AMD B850 | SAM5 | ATX | DDR5 | 8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/5800/5600/5200/4800/4400 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 3xM.2 | 1xHDMI | 1xDisplayPort | 5xUSB 2.0 | 3xUSB 3.2 type B | 2xUSB 3.2 | 2xUSB-C | 1xPS/2 | 1xOptical S/PDIF | 1xRJ45 | SATA | USB-C | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | Audio | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10 | TPM Header

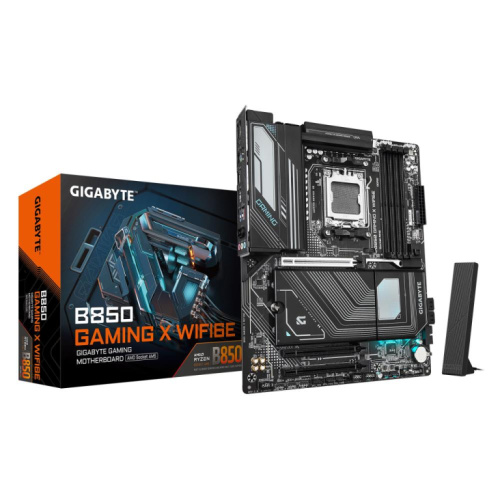

Kirjeldus | B850 GAMING X WIFI6E
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0x4 slot
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
|
Tootja lehekülg | www.gigabyte.com/Emaplaat/B850-GAMING-X-WIFI6E#kf |
Mudel | B850 GAMING X WIFI6E |
Kiibistik | AMD B850 |
Socket | SAM5 |
Kujutegur | ATX |
Mälutüüp | DDR5 |
Mälusiini sagedus | 5600/6400/6600/4800/7600/7950/7200/8000/7400/7900/7800/8200/5800/5200/7000/4400/6800 MHz |
Mälupesad | 4 |
M.2 | 3 |
PCI-Express 3.0 1x | 2 |
HDMI | 1 |
USB 3.2 | Yes |
USB-C | Yes |
RJ45 | 1 |
USB 3.2 tüüpi B | 3 |
PS/2 | 1 |
DisplayPort | 1 |
Optiline S/PDIF | 1 |
USB 2.0 | Yes |
WiFi | Yes |
Bluetooth (sinihammas) | Yes |
SATA | Yes |
Integreeritud videokaart | Depending on CPU |
Integreeritud helikaart | Yes |
Integreeritud võrgukaart | 2.5 Gigabit |
RAID | SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
TPM-moodul | Header |
Kaal | 1 kg |
Brutokaal | 2.09 kg |
Üksuse kasti laius | 0.27 |
Üksuse kasti pikkus | 0.34 |
Üksuse kasti kõrgus | 0.082 |
Täiskirjeldus | AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/5800/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|3xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2 type B|2xUSB 3.2|2xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header |
Kategooria kood | MBA |
