Power Supply|LIAN LI|EDGE GOLD 1000|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|G9P.EG1000G.BH00.EU

Power Supply|LIAN LI|EDGE GOLD 1000|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|G9P.EG1000G.BH00.EU
€ 143.00
-+
Lisa korvi
  • KM-ta: € 115.32
  • Bränd:Lian li Mudel:G9P.EG1000G.BH00.EU Saadavus:Tellimisel 2-3 Tööpäeva Kogus:18 tk. Garantii:24 Kuud
Taotle järelmaksu

Esimene osamakse:

Periood:

99 € kuumaks Hinnanguline kuumakse summa. Pankadest pakkumiste saamiseks klõpsake nuppu "Taotle järelmaksu" ja täitke taotlusvorm.
1000 W | 100 - 240 V | Efficiency 91.24 % | 80 PLUS certification 80 PLUS Gold | PC | SFX | Noise level 39.3 dB | Fan diameter 120 mm | EDGE GOLD 1000
Kirjeldus THE “POWER” FOR DUAL CHAMBER CASES

The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.

AVAILABLE IN 2 COLORS AND 4 WATTAGES

Offering versatile options, the EDGE Gold PSU is available in multiple configurations with or without a USB hub to meet different power needs and match the components’ colors.

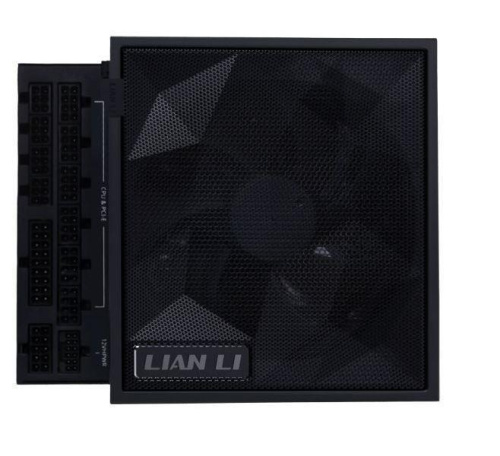

INNOVATIVE L-SHAPE DESIGN

Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.

MODULAR USB & FAN PWM HUB – EDGE HUB

The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.

Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.

USB Hub
4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.

Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.

Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.

Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.

MAGNETIC DUST FILTER

The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.

CONVENIENT CABLE MANAGEMENT

Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.

LONGER CABLE REACH FOR VERSATILE BUILDS

The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.

EFFICIENCY LEVEL CERTIFIED

Achieving the 80 PLUS Gold, Cybenetics Platinum and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.

COOL IN SILENCE

Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.

STABLE DUAL COLOR PCIE5.1 CONNECTOR

LIAN LI’s in-house R&D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.

The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.

BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD

The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.

INDUSTRIAL GRADE CAPACITORS

The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.

COMPREHENSIVE CONNECTORS

The modular cables have a new longer design compared to the previous EDGE PSU, which ensures easy component reach and efficient cable management.

SUFFICIENT PROTECTION

Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of election flow Protection), NLO (No Load Operation), and an Inrush Current Limiter that ensures the EDGE GOLD delivers continuously stable and reliable power.L-Shape design for dual chamber case80 PLUS Platinum EfficiencyBuilt-in USB expantion hub with 4 internal USB 2.0 headersIntegrating German EPCOS bulk capacitorsIn-house R&D 12V-2×6 alloy copper soldered terminalsATX 3.0/3.1 compliant PSUFull modular sleeved cable with cable comb MB/CPU/GPU connectors
Summary Lian Li EG1000G. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Emaplaat power connector: 24-pin ATX, Emaplaat power cable length: 62 cm, SATA power cable length: 300,400 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Must, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Tootja lehekülg https://lian-li.com/product/edge/
Kategooria kood PSU
CnCode 85044095
Üksuse kasti kõrgus 0.205
Üksuse kasti pikkus 0.32
Üksuse kasti laius 0.13
AC sisendsagedus 50/60 Hz
AC sisendpinge 100 - 240 V
Kombineeritud võimsus (+12V) 996 W
Kombineeritud võimsus (+3,3 V) 120 W
Kombineeritud võimsus (+5 V) 120 W
Töötsükkel 91.24 %
Maksimaalne sisendvool (@110V) 12 A
Maksimaalne sisendvool (@220V) 6 A
Koguvõimsus 1000 W
ATX toitepistik (24 kontaktiga) Yes
Kaabli tüüp Fully-Modular
CPU P4 pistik (4 kontaktiga) 1
CPU toitekaabli pikkus 750 mm
CPU toitepistik (4+4 pin) Yes
EPS-i toitepistik (8-kontaktiline) Yes
Emaplaadi toitekaabli pikkus 620 mm
Emaplaadi toitepistik 24-pin ATX
SATA toitepistikute arv 3
PCI Expressi toitekaabli pikkus 400 mm
PCI Expressi toitepistikud (6+2 kontaktiga) 1
PCI Expressi toitepistikud (8 kontaktiga) 1
Välisseadmete (Molex) toitekaabli pikkus 500 mm
Välisseadmete (Molex) toitepistikud (4 kontaktiga) 4
SATA toitekaabli pikkus 300/400 mm
80 PLUS sertifikaat 80 PLUS Gold
Laagri tehnoloogia FDB
Müratase 39.3 dB
Toiteallika (PSU) kujutegur SFX
Eesmärk PC
Vaikne režiim Yes
Toetatud emaplaadi vormitegurid ATX
Ventilaatori läbimõõt 120 mm
Toote värv Must
Kaablid komplektis CPU,PCIe,Peripheral (Molex),SATA
Ohutus OCP/ OPP/ UVP/ OVP/ OTP/ SCP
Sügavus (paksus) 182 mm
Kõrgus 150 mm
Laius 86 mm
Mudeli nimetus EDGE GOLD 1000
Units per Shipping Box 4
Unit Calculated Volume 0.01118 cubm
Unit Calculated Weight 4.05 kg
