processor | J6412 |
processor manufacturer | Intel |
processor family | Intel® Celeron® |
number of CPU cores | 4 |
processor threads | 4 |
Processor Boost Frequency | 2,6 GHz |
processor clock speed | 2 GHz |
Eigenschaft | AC-Netzadapter |
Buffer memory L2 | 1,5 MB |
Thermal Design Power (TDP) | 10 W |
Storage | |
memory type | SO-DIMM |
Number of memory slots | 1 |
RAM memory maximum | 32 GB |
Supported memory speed | 3200 MHz |
Supported memory | DDR4-SDRAM |
memory channels | Einfach-Kanal |
memory voltage | 1.2 V |
storage medium | |
Supported storage drives | SSD |
supported storage drive sizes | M.2 |
SSD form factor | M.2 |
storage drive interface | SATA |
Compatible memory cards | MicroSD (TransFlash) |
graphic | |
graphics card family | Intel |
Eingebautes Grafikkartenmodell | Intel® UHD Graphics |
Maximum resolution | 3840 x 2160 Pixel |
network | |
LAN-Controller | Intel I226-V |

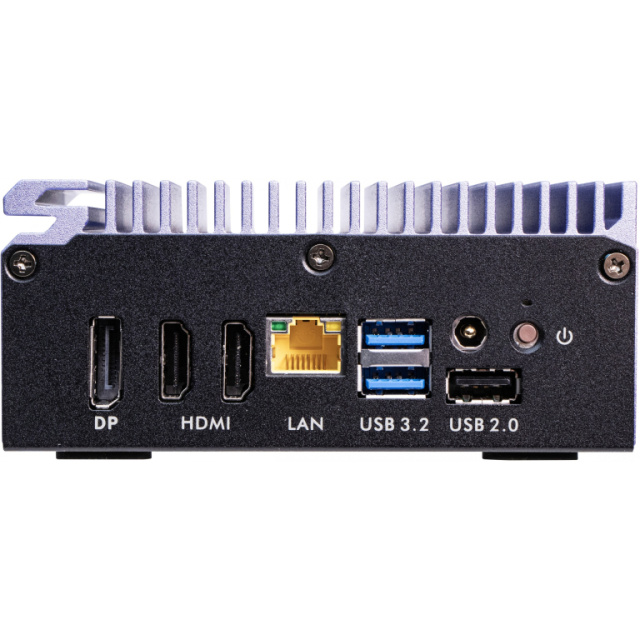

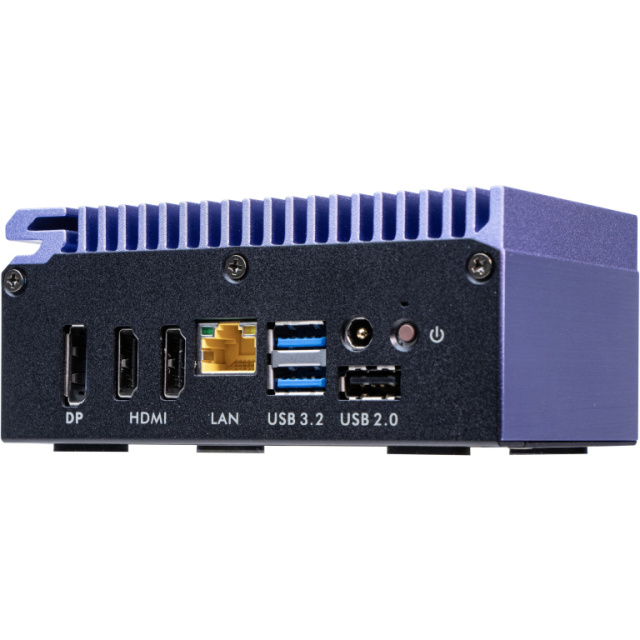

connections and interfaces | |
Number of USB 2.0 ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 2 |
Number of HDMI ports | 2 |
HDMI-Version | 2.0b |
Number of DisplayPort connections | 1 |
DisplayPorts-Version | 1.4 |
headphone outputs | 1 |
Number of Ethernet LAN ports (RJ-45) | 2 |
Design | |
case type | 0,46L Größe PC |
Product color | Schwarz, Blau |
cooling | Passiv |
LED indicators | Leistung |
housing material | Aluminium |
Panel mounting interface | 100 x 100 mm |
product type | Mini-PC Barebone |
Services | |
motherboard chipset | Intel SoC |
processor socket | BGA 1493 |
Number of processors supported | 1 |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) version | 2.0 |
audio chip | Realtek ALC888-VD |
Technical details | |
Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), RoHS, VCCI |
logistic data | |
Goods tariff number (HS) | 84733080 |
Software | |
Supports Windows operating systems | Windows 10, Windows 11 |
sustainability | |
sustainability certificates | ENERGY STAR |
energy | |
power supply type | Externer AC-Adapter |
power supply | 65 W |
Number of power supply units | 1 |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
power supply output voltage | 19 V |
AC adapter output current | 3,42 A |
operating conditions | |
operating temperatur | 0 - 40 °C |
Operating relative humidity | 20 - 80% |
weight and dimensions | |
broad | 120 mm |
depth | 75 mm |
height | 51 mm |
Weight | 720 g |
package weight | 1,2 kg |
scope of delivery | |
