Maximum number of SMP processors | 1 |
Processor Socket | LGA 1700 |
Compatible processor series | Intel® Core™ i7 |
Processor manufacturer | Intel |
HDCP | Yes |
Maximum Resolution | 7680 x 4320 pixels |
Parallel processing technology support | Not supported |
audio chip | Realtek ALC897 |
PC health monitoring | CPU |
Motherboard form factor | micro ATX |
Windows operating systems supported | Windows 11 x64 |
MOTHERBOARD CHIPSET | Intel H610 |
Motherboard chipset family | Intel |
Supported memory types | DDR5-SDRAM |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory clock speeds | 4800 |
Maximum internal memory | 96 GB |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Depth | 193 mm |
Width | 220 mm |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
LAN controller | Realtek 8111H |
12V power connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
ATX Power connector (24-pin) | Yes |
USB 2.0 connectors | 1 |
BIOS Type | UEFI AMI |
Drivers included | Yes |
CABLES INCLUDED | SATA |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |

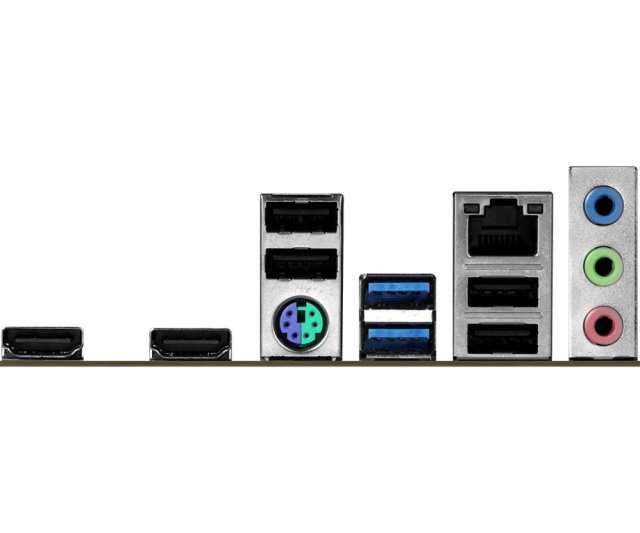

HDMI ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
PS/2 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
