Compatible processor series | AMD Ryzen™ 7 |
Processor manufacturer | AMD |
Processor Socket | Socket AM5 |
MOTHERBOARD CHIPSET | AMD X870 |
Windows operating systems supported | Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Motherboard chipset family | AMD |
Memory channels | Dual-channel |
Supported memory types | DDR5-SDRAM |
Maximum internal memory | 256 GB |
ECC сompatibility | ECC & Non-ECC |
Number of memory slots | 4 |
Memory slots type | DIMM |
Depth | 244 mm |
Width | 305 mm |
Bluetooth | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11g |
LAN controller | Realtek RTL8125-BG |
Ethernet interface type | 2.5 Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Ethernet LAN | Yes |
Bluetooth Version | 5.4 |
CPU fan connector | Yes |
Front panel audio connector | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of chassis fan connectors | 3 |
Number of SATA III connectors | 4 |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
BIOS Type | UEFI AMI |
BIOS memory size | 256 Mbit |
Raid Support | Yes |
RAID levels | 10 |

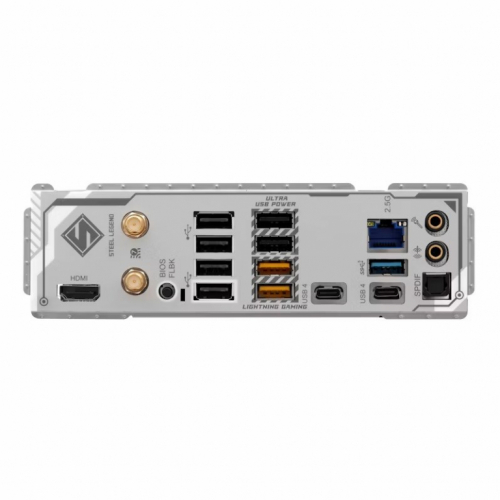

Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Microphone in | Yes |
S/PDIF out port | Yes |
USB4 Gen 3x2 ports quantity | 4 |
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
