Compatible processor series | 2nd Generation AMD Ryzen™ 7 |
Processor Socket | Socket AM4 |
Processor manufacturer | AMD |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
audio chip | Realtek ALC887-VD2 |
MOTHERBOARD CHIPSET | AMD B450 |
Windows operating systems supported | Windows 7 x64 |
Audio output channels | 7.1 channels |
Number of memory slots | 2 |
Supported memory clock speeds | 2133 |
Maximum internal memory | 64 GB |
Supported memory types | DDR4-SDRAM |
Memory slots type | DIMM |
Unbuffered memory | Yes |
Depth | 244 mm |
Width | 244 mm |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Audio connector | Yes |
CPU fan connector | Yes |
USB 2.0 connectors | 2 |
Number of chassis fan connectors | 2 |
ATX Power connector (24-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
S/PDIF out connector | Yes |
BIOS Type | UEFI AMI |
CABLES INCLUDED | SATA |
Supported storage drive interfaces | M.2, PCI Express 3.0, Serial ATA III |
RAID levels | 1 |
Microphone in | Yes |

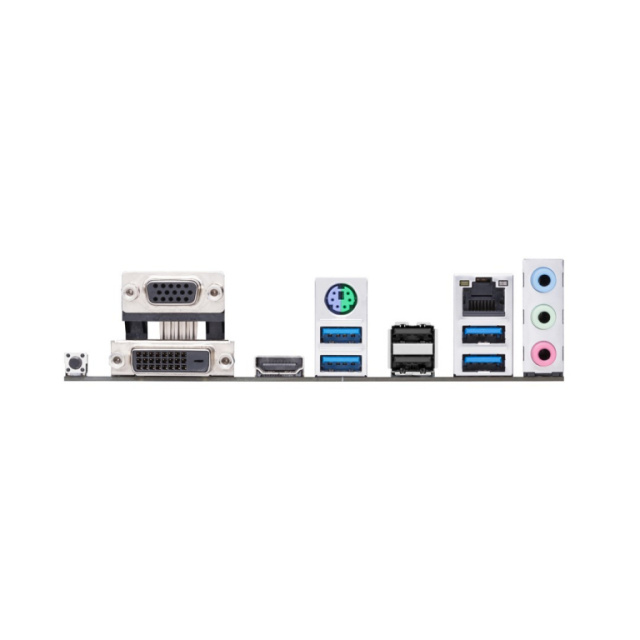

VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
Headphone outputs | 1 |
PS/2 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
PCI Express x16 (Gen 3.x) slots | 2 |
PCI Express x1 (Gen 2.x) slots | 2 |
