Compatible processor series | Intel® Core™ i7 |
Processor manufacturer | Intel |
Processor Socket | LGA 1150 (Socket H3) |
Maximum number of SMP processors | 1 |
HDCP | Yes |
DirectX version | 11.1 |
Windows operating systems supported | Windows 7 |
MOTHERBOARD CHIPSET | Intel® H81 |
Audio output channels | 5.1 channels |
Motherboard form factor | micro ATX |
audio chip | Realtek ALC887 |
Motherboard chipset family | Intel |
Supported memory types | DDR3-SDRAM |
Memory channels | Dual-channel |
Number of memory slots | 2 |
Memory slots type | DIMM |
Maximum internal memory | 16 GB |
Supported memory clock speeds | 1600 MHz |
Width | 170 mm |
Depth | 190 mm |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Peripheral (Molex) power connectors (4-pin) | 1 |
Number of SATA II connectors | 2 |
Front panel connector | Yes |
USB 2.0 connectors | 2 |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of SATA III connectors | 2 |
CPU fan connector | Yes |
Clear CMOS jumper | Yes |
CABLES INCLUDED | SATA |
Supported storage drive interfaces | SATA II, SATA III |

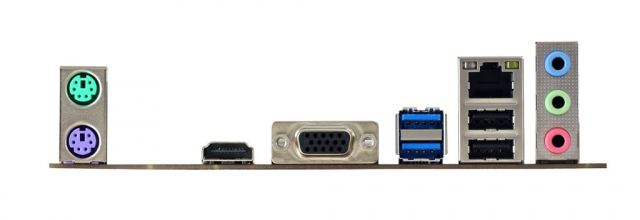

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
Headphone outputs | 3 |
PS/2 ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
PCI Express x16 (Gen 2.x) slots | 1 |
PCI Express x1 (Gen 2.x) slots | 1 |
