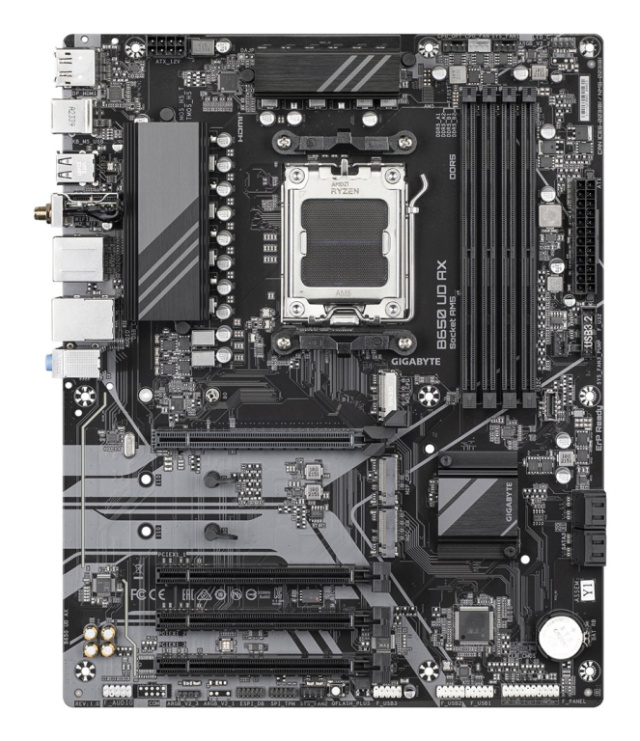

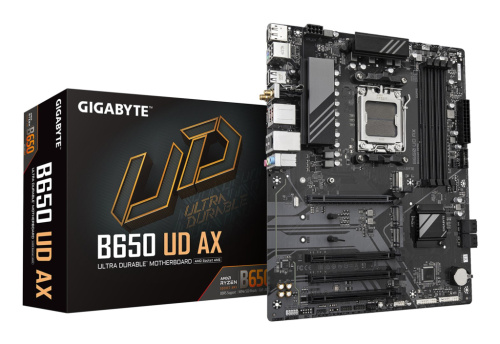

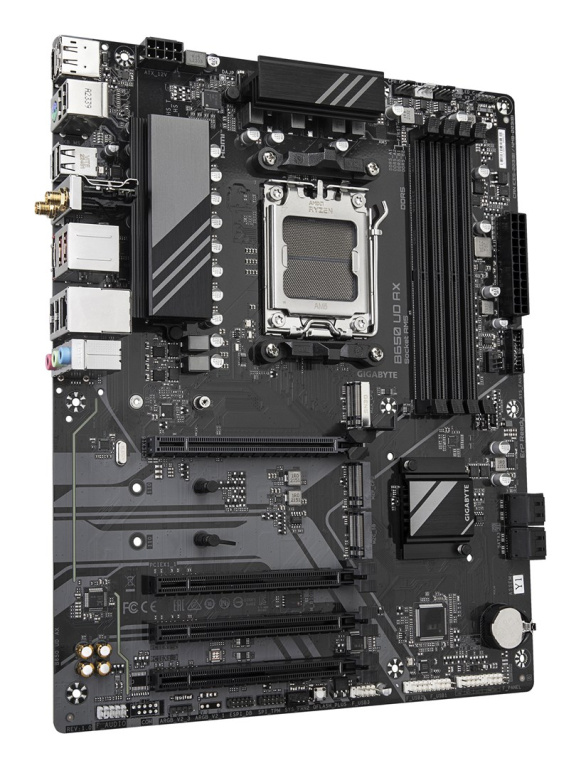

GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2

GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2
  • GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2
  • GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2
  • GIGABYTE B650 UD AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6, USB 3.2 Gen 2
€ 139.50
-+
Add to cart
  • Without TAX: € 114.34
  • Brand:Gigabyte Model:B650 UD AX Availability:Pre-order 3-7 W. Days Quantity:18 pcs. Warranty:36 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Warranty period 3 year(s)
Processor Socket Socket AM5
Processor manufacturer AMD
Compatible processor series AMD Ryzen 7000 Series
Supported processor sockets Socket AM5
Parallel processing technology support Not supported
DirectX version 12.0
Maximum Resolution 4096 x 2160 pixels
HDCP Yes
Windows operating systems supported Windows 11 x64
PC health monitoring Water cooling
audio chip Realtek ALC897
Product colour Bronze
Audio output channels 7.1 channels
Motherboard chipset family AMD
MOTHERBOARD CHIPSET AMD B650
Power source type ATX
Motherboard form factor ATX
Supported memory clock speeds 6400 MHz
Number of memory slots 4
Maximum internal memory 256 GB
Unbuffered memory Yes
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speed (max) 7600 MHz
Supported memory types DDR5-SDRAM
Maximum internal memory per slot 64 GB
ECC сompatibility Non-ECC
Height 35 mm
Depth 244 mm
Width 305 mm
Wi-Fi standards 802.11a
LAN controller Realtek RTL8111H
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
WLAN controller model Realtek RTL8851BE
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Number of chassis fan connectors 3
CPU fan connector Yes
USB 2.0 connectors 3
TPM connector Yes
Front panel connector Yes
Number of SATA III connectors 4
RGB LED pin header Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
EPS power connector (8-pin) Yes
Serial port headers 1
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
12V power connector Yes
Number of RGB LED pin headers 4
Number of water pump connectors 2
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Clear CMOS button Yes
BIOS Type UEFI AMI
Desktop Management Interface (DMI) version 2.7
Clear CMOS jumper Yes
Package height 80 mm
Package width 335 mm
PACKAGE WEIGHT 2.2 kg
Package depth 270 mm
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Screws included Yes
Antenna included Yes
Batteries Included Yes
RAID levels 0
Number of storage drives supported 7
Number of HDDs supported 4
Raid Support Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD

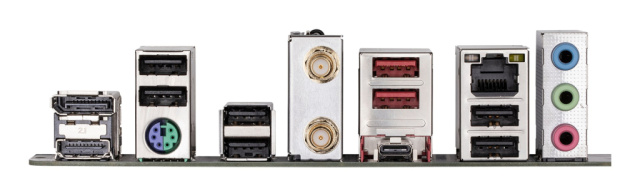

HDMI version 2.1
USB 2.0 ports quantity 6
Headphone outputs 1
DisplayPort version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
WiFi-AP antenna jack 2
HDMI ports quantity 1
DisplayPorts quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 3.x) slots 2
Number of M.2 (M) slots 3
2nd M.2 largest key size 22110
1st M.2 largest key size 25110
1st M.2 highest PCI Express generation 5.0
3rd M.2 highest PCI Express generation 4.0
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
Number of battery cells 1
Battery Technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight 1.95 kg
Country of origin China
Warnings Do not disassemble to avoid damage to internal components and loss of warranty.
