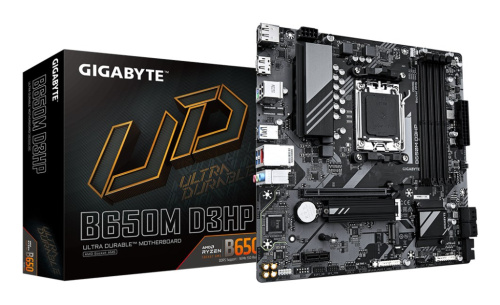

GIGABYTE B650M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1 - Motherboards - Computer Components

€ 118.00

Add to cart

Without TAX: € 95.16
Brand:Gigabyte Model:B650M D3HP Availability:Pre-order 3-7 W. Days Quantity:16 pcs. Warranty:36 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Compatible processor series	AMD Ryzen 9000 Series
Processor manufacturer	AMD
Supported processor sockets	Socket AM5
Processor Socket	Socket AM5
HDCP	Yes
Maximum Resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
DirectX version	12.0
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
PC health monitoring	Voltage
Windows operating systems supported	Windows 10 x64
Power source type	ATX
MOTHERBOARD CHIPSET	AMD B650
Audio output channels	7.1 channels
Product colour	Bronze
audio chip	Realtek ALC897
Supported memory clock speed (max)	7600 MHz
ECC сompatibility	Non-ECC
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Number of memory slots	4
Memory channels	Dual-channel
Maximum internal memory per slot	64 GB
Supported memory clock speeds	4800
Unbuffered memory	Yes
Maximum internal memory	256 GB
Depth	244 mm
Width	244 mm
Height	35 mm
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8125
Number of CPU fan connectors	1
Number of RGB LED pin headers	3
Front panel connector	Yes
TPM connector	Yes
Number of SATA III connectors	4
12V power connector	Yes
RGB LED pin header	Yes
Number of EPS power connectors (8-pin)	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
ATX Power connector (24-pin)	Yes
USB 2.0 connectors	2
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Clear CMOS jumper	Yes
BIOS Type	UEFI AMI
Desktop Management Interface (DMI) version	2.7
Package width	265 mm
Package depth	265 mm
Package height	54 mm
PACKAGE WEIGHT	1.02 kg
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries Included	Yes
Screws included	Yes
Number of storage drives supported	6
RAID levels	1
Raid Support	Yes
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Headphone outputs	1
DisplayPorts quantity	2
DisplayPort version	1.4
PS/2 ports quantity	1
Line-in	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
1st M.2 largest key size	2580
Number of M.2 (M) slots	2
PCI Express x16 (Gen 4.x) slots	1
2nd M.2 largest key size	22110
PCI Express x1 (Gen 3.x) slots	1
2nd M.2 highest PCI Express generation	4.0
1st M.2 highest PCI Express generation	4.0
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
Country of origin	China

Delivery information:

1. Collect in Store, free (Tallinn, Vana-Lõuna 19 street, M-F 9:00-17.00):
Collect in Store	3-7 W. Days	Free

2. SmartPOST automat (3eur / order over 20eur - 2eur / over 200eur - free):
Smartpost	4-8 W. Days	2 EUR

3. Omniva automat (3eur / order over 20eur - 2eur / over 200eur - free):
Omniva	4-8 W. Days	2 EUR

4. DPD Pickup (2 EUR / order over 100 EUR - free):
DPD Pickup	4-8 W. Days	Free

5. Venipak Pickup (2 EUR / order over 100 EUR - free):
Venipak Pakiautomaat	4-8 W. Days	Free

6. Curier:
Curier in Estonia	4-8 W. Days	5 EUR

Manufacturer:	Gigabyte
Socket:	AM4

Manufacturer:	Gigabyte
Socket:	AM4

Manufacturer:	Gigabyte
Socket:	LGA1851

Manufacturer:	Asrock
Socket:	AM4

Manufacturer:	Gigabyte
Socket:	LGA1700

items

Filters

Categories

SmartID

MobilID

PC components and pherepherial

PC components

Motherboards

GIGABYTE B650M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1

PC components

PC Peripherals

Multimedia

External storage devices

Delivery information:

Same goods

Gigabyte B550 AORUS ELITE V2 AM4 4DDR4 HDMI/DP M.2 ATX

GIGABYTE B550 EAGLE AM4 MB 4xDDR4 4xSATA 2xM.2

GIGABYTE H810M S2H LGA1851 MB

Asrock B550 PG Riptide AMD B550 Socket AM4 ATX

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760MD3HPWIFI61.0

MSI B760 GAMING PLUS WIFI DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4

Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX

GIGABYTE H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

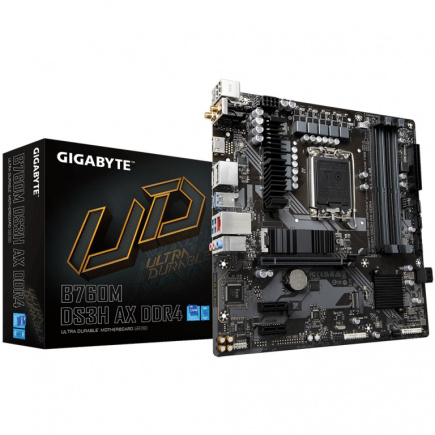

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2
