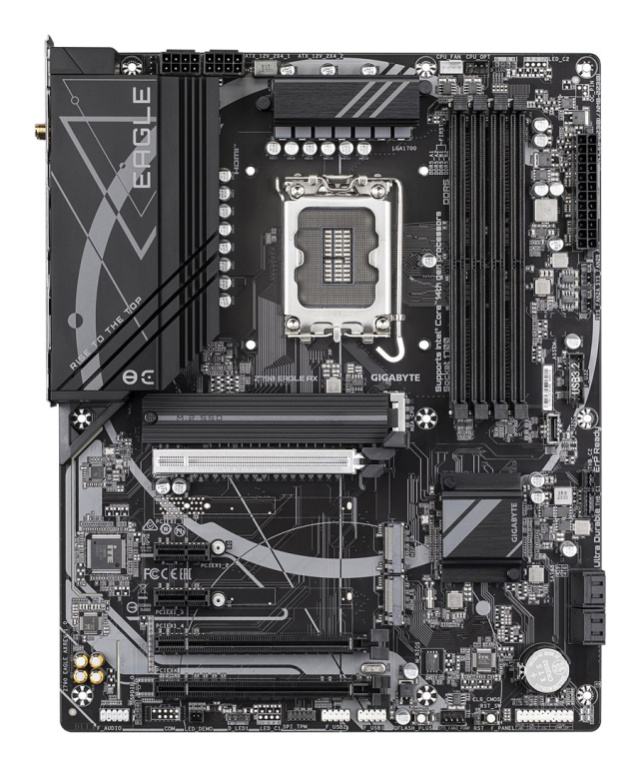

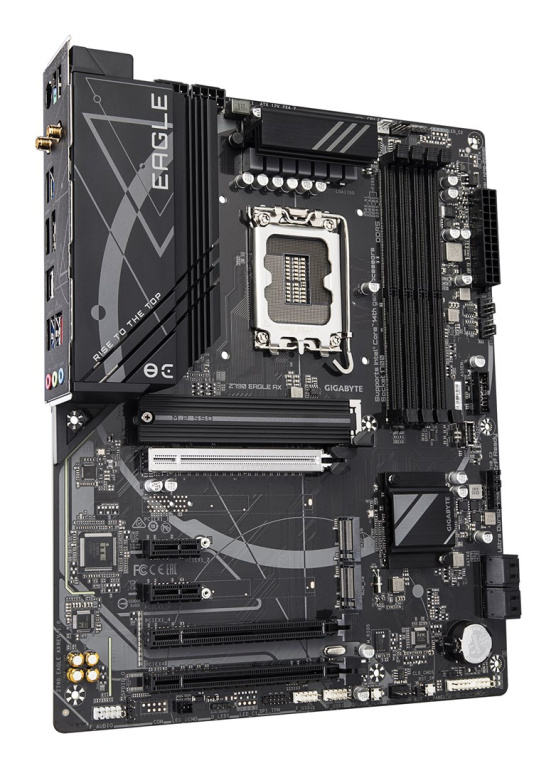

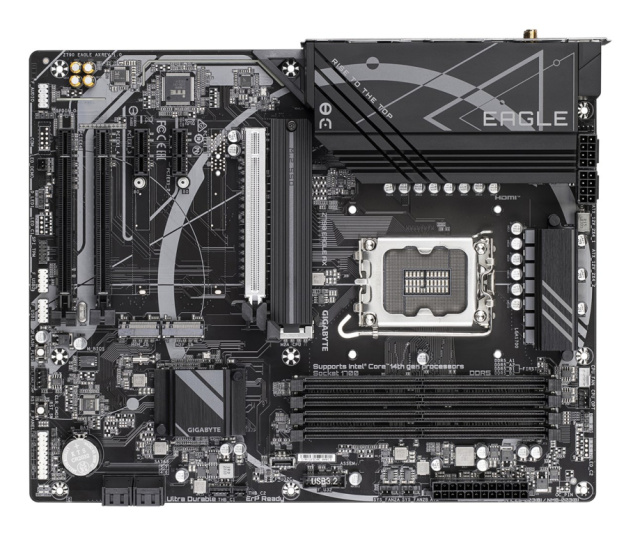

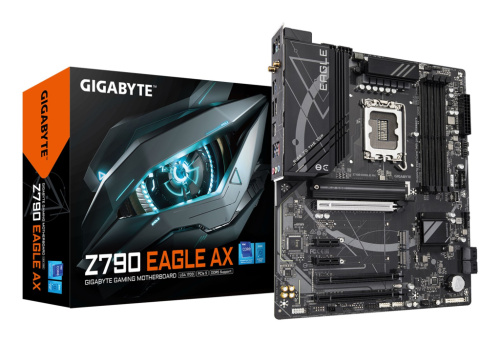

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 - Motherboards - Computer Components

€ 194.00

Add to cart

Without TAX: € 156.45
Brand:Gigabyte Model:Z790 EAGLE AX Availability:Pre-order 3-7 W. Days Quantity:18 pcs. Warranty:36 Months

Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.

Warranty period	3 year(s)
Processor Socket	LGA 1700
Processor manufacturer	Intel
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Core™ i5
Maximum number of SMP processors	1
Maximum internal memory supported by processor	192 GB
On-board graphics card	No
Parallel processing technology support	Not supported
HDCP	Yes
Maximum Resolution	4096 x 2304 pixels
Windows operating systems supported	Windows 11 x64
PC health monitoring	Temperature
Product colour	Bronze
MOTHERBOARD CHIPSET	Intel Z790 Express
Motherboard chipset family	Intel
Power source type	ATX
Motherboard form factor	ATX
Audio output channels	7.1 channels
audio chip	Realtek ALC897
Supported memory clock speed (max)	7600 MHz
Number of memory slots	4
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Memory slots type	DIMM
Supported memory clock speeds	6400
Supported memory module capacities	2GB
Unbuffered memory	Yes
Maximum internal memory	192 GB
Height	35 mm
Depth	244 mm
Width	305 mm
Wi-Fi standards	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth Version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Front panel connector	Yes
Number of EATX power connectors	2
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
RGB LED pin header	Yes
Total number of SATA connectors	4
TPM connector	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Thunderbolt headers	2
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
Clear CMOS button	Yes
BIOS Type	UEFI AMI
Package width	335 mm
Package height	80 mm
Package depth	270 mm
PACKAGE WEIGHT	1.81 kg
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Antenna included	Yes
CABLES INCLUDED	SATA
Batteries Included	Yes
RAID levels	5
Number of storage drives supported	7
Number of HDDs supported	4
Raid Support	Yes
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III

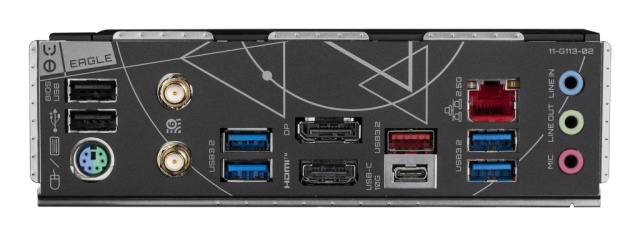

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Microphone in	Yes
HDMI version	2.1
USB connector type	USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PS/2 ports quantity	1
WiFi-AP antenna jack	2
HDMI ports quantity	1
Headphone outputs	1
DisplayPorts quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.2
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	1
PCI Express x1 (Gen 3.x) slots	2
Battery weight	3 g
Battery Technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Number of battery cells	1
Lithium weight per battery	0.07 g
Country of origin	China
