energy | |
overall performance | 1050 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
input current | 16 A |
Power Factor Correction Filter (PFC) | Aktiv |
Combined Current (+3.3V) | 100 W |
Combined power (+12V) | 1050 W |
Combined current (+5V) | 100 W |
Combined current (-12V) | 3,6 W |
Combined current (+5Vsb) | 15 W |
Max. output current (+3.3V) | 20 A |
Max. output current (+12V) | 87,5 A |
Max output current (+5V) | 20 A |
Max. output current (+5Vsb) | 3 A |

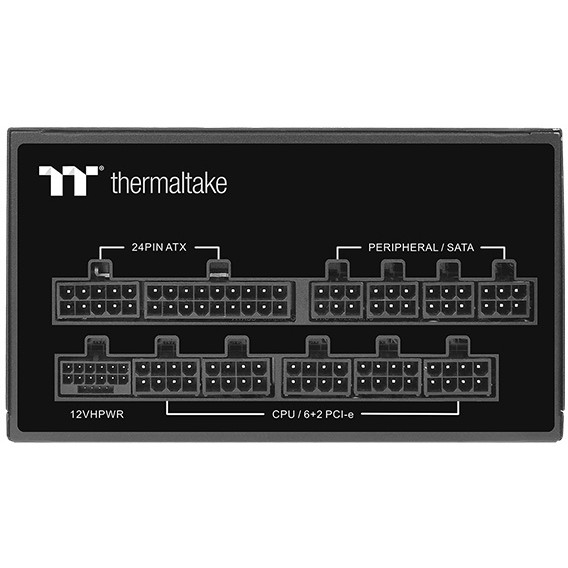

connections and interfaces | |
Motherboard connector plug | 24-pin ATX |
Power cable length motherboard | 60 cm |
Number of SATA power plugs | 12 |
SATA power cable length | 500,650,800,950 mm |
Number of Molex connectors 4pin | 4 |
Peripheral (Molex) power cord length | 500,650,800,950 mm |
Eigenschaft | Diskettenlaufwerkstecker |
Number of PCI Express power connectors 6+2pin | 5 |
PCI Express-Stromanschlüsse (12+4 Pol) | 1 |
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge | 600 mm |
Floppy drive cable length | 15 cm |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |
storage type | FDB |
Mean Time Between Failures (MTBF) | 100000 h |
certification | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
Design | |
Product color | Schwarz |

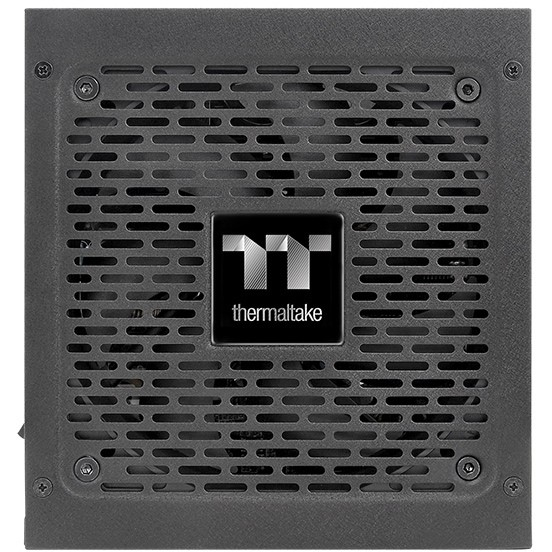

fan diameter | 12 cm |
number of fans | 1 Lüfter |
operating conditions | |
operating temperatur | 0 - 45 °C |
Storage temperature range | -40 - 70 °C |
Operating relative humidity | 5 - 85% |
humidity during storage | 5 - 95% |
weight and dimensions | |
broad | 150 mm |
depth | 140 mm |
height | 86 mm |
