Warranty period | 10 year(s) |
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Fan location | Top |
On/off switch | Yes |
Cooling type | Active |
Product colour | Black |
Number of fans | 1 fan(s) |
Fan Diameter | 12 cm |
Total power | 550 W |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 550 W |
Power Factor Correction (PFC) type | Active |
Power protection features | Short circuit |
AC input voltage | 100 - 240 V |
Input current | 10/5 A |
AC input frequency | 50 - 60 Hz |
Efficiency | 92.8% |
Power factor | 0.98 |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Max output current (+12V1) | 28 A |
Peak power | 600 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Max output current (-12V) | 0.3 A |
Max output current (+12V2) | 24 A |
Max output current (+5V) | 20 A |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Operating temperature (T-T) | 0 - 40 °C |
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Purpose | PC |
80 PLUS Certification | 80 PLUS Gold |
Noise level | 17.1 dB |
EPS version | 2.92 |
Power supply unit (PSU) form factor | ATX |
Mean time between failures (MTBF) | 100000 h |
ATX version | 3.0 |
Package Type | Box |

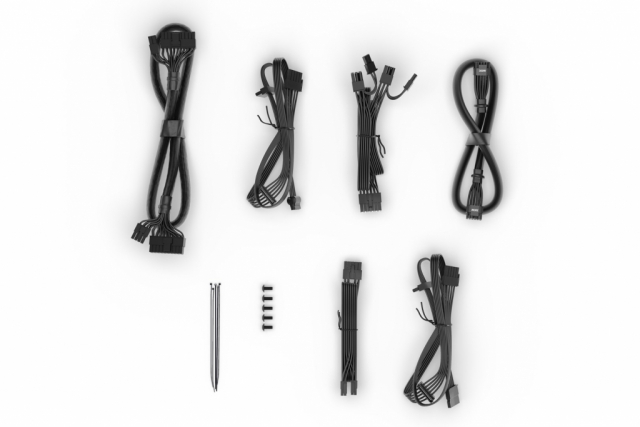

CABLES INCLUDED | PATA, PCIe, Peripheral (Molex), SATA |
Peripheral (Molex) power connectors (4-pin) | 1 |
PCI Express power connectors (6+2 pin) | 2 |
Cabling Type | Fully-Modular |
Motherboard power cable length | 55 cm |
Peripheral (Molex) power cable length | 550 |
SATA power cable length | 800 |
Number of PATA power connectors | 2 |
Motherboard power connector | 20+4 pin ATX |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
Number of SATA power connectors | 5 |
EPS power connector (4+4 pin) | Yes |
Cable ties included | Yes |
Number of screws | 5 |
Screws included | Yes |
Noise level (silent mode, <30%) | 8 dB |
Noise level (full-load mode, 100%) | 17.1 dB |
Noise level (quiet mode, 50%) | 8.2 dB |
