Compliance certificates | RoHS |
Warranty period | 10 year(s) |
Fan Diameter | 14 cm |
Cooling type | Active |
On/off switch | Yes |
Number of fans | 1 fan(s) |
Product colour | Black |
Combined power (+5Vsb) | 15 W |
Maximum input current (@220V) | 5 A |
Max output current (+3.3V) | 25 A |
Combined power (+3.3V) | 150 W |
Maximum input current (@110V) | 10 A |
Max output current (+12V) | 62.5 A |
Max output current (-12V) | 0.8 A |
Max output current (+5V) | 25 A |
Combined power (+5V) | 150 W |
Max output current (+5Vsb) | 3 A |
Combined power (+12V) | 750 W |
Combined power (-12V) | 9.6 W |
AC input frequency | 47 - 63 Hz |
Input current | 10 - 5 A |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Weight | 3.19 kg |
Width | 150 mm |
Depth | 160 mm |
Height | 86 mm |
EPS version | 2.92 |
ATX version | 2.4 |
Bearing technology | Rifle |
80 PLUS Certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Mean time between failures (MTBF) | 100000 h |
Package Type | Box |
Floppy drive power connector | 1 |
PCI Express connector | Yes |
Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 8 |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 7 |

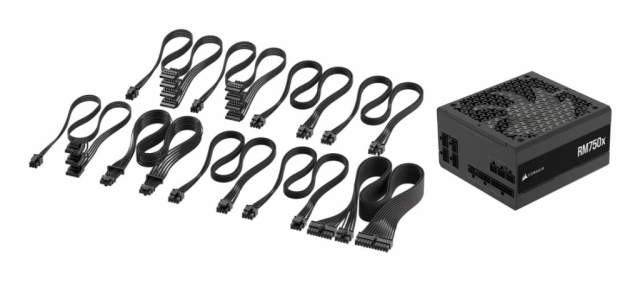

Cabling Type | Fully-Modular |
