Audio Support | Yes |
Compliance certificates | RoHS |
Certification | CE, RoHS |
Supported graphics resolutions | 640 x 480 (VGA) |
Cable types supported | Cat5 |
HDCP | Yes |
Audio system | stereo |
Maximum transfer distance | 120 m |

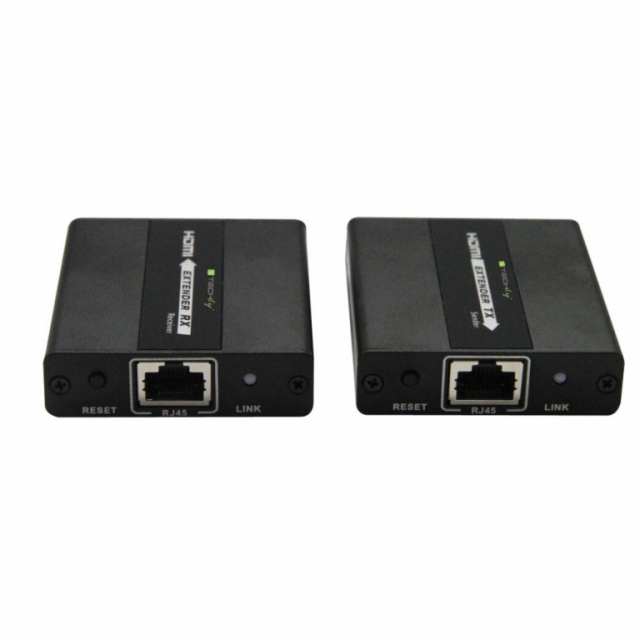

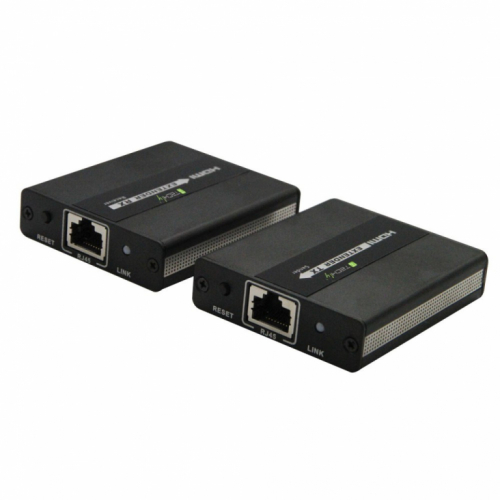

Type | AV transmitter & receiver |
Material | Aluminium |
HDCP version | 1.4 |
Maximum Resolution | 1920 x 1080 pixels |
Transition Minimized Differential Signaling (TMDS) input | 1.5 V |
Maximum refresh rate | 60 Hz |
Product colour | Black |
LED indicators | Yes |
IR pass-through | Yes |
Power consumption (transmitter) (max) | 2 W |
Operating voltage | 5 V |
Output current | 1 A |
Power consumption (receiver) (max) | 2 W |
Operating temperature (T-T) | 0 - 60 °C |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -10 - 70 °C |
Weight | 413 g |
Receiver dimensions (WxDxH) | 69.57 x 58.8 x 16.1 mm |
Depth | 58.8 mm |
Width | 69.6 mm |
Transmitter dimensions (WxDxH) | 69.57 x 58.8 x 16.1 mm |
Height | 16.1 mm |
Receiver weight | 70 g |
Transmitter weight | 70 g |
IR blaster included | Yes |
IR receiver included | Yes |
Manual | Yes |
AC adapter included | Yes |
Ethernet LAN | Yes |
HDMI version | 1.3 |
DC-in jack | Yes |
Remote (IR) input | 1 |
RJ-45 input ports | 1 |
RJ-45 output ports | 1 |
Connectivity Technology | Wired |
HDMI in | 1 |
Number of HDMI outputs | 1 |
Warnings | Do not connect devices with higher power consumption than recommended. |
Vendor code | 104301 |
