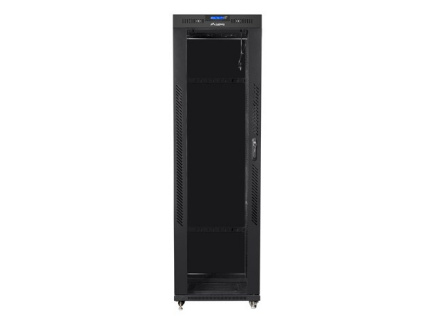

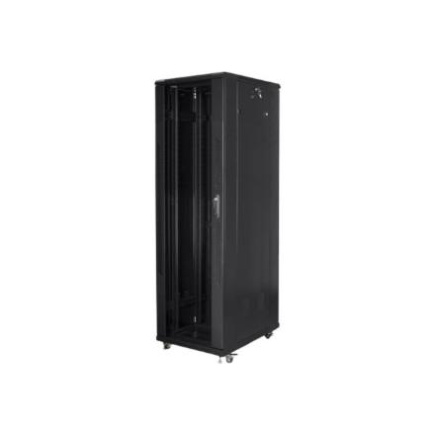

Lanberg FF01-8027-12BL single section standing cabinet is a solution intended for network construction, mounting of cables and equipment in size 19 with a maximum total load capacity of 800 kg. It may be used in data centres which require a large amount of space in equipment cabinets. The cabinet will successfully fulfil its role in large, extensive networks and server rooms, both in small, medium and large companies and corporations. It will also prove useful in low-current installations such as cable TV networks, alarm systems, fire protection, access control and CCTV and IP monitoring systems. The structure is made using high quality rolled steel and is characterised by excellent design and workmanship.
The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front door made of tempered glass with a lock, with the possibility of right or left assembly. It has removable side panels (with locks included) and a solid steel rear door with lock. It is possible to run cabling through the lockable top and bottom panels (with plugs supplied). The cabinet has a LCD display mounted on the front, which displays basic information (e.g. temperature inside the cabinet, current time and the current status of the fans) about the operating status of the device.
The set includes a ventilation panel with 4 fans 230V. In addition, accessories for fixing the support rails, M6 screws and input panel plugs are included, and thanks to the self-assembly design (flat pack), the whole unit comes in 4 flat packs for easy transportation.
Features:
- Cabinet type: standing,
- Colour: Black RAL9004,
- Height: 27U,
- Dimensions of the cabinet (H x W x D): 800x1000x1431 mm,
- Height (top panel - bottom panel): 1352 mm,
- Height (upper panel - base): 1425 mm,
- Height (upper panel - ground including screws): 1431 mm,
- LCD display: Yes,
- Floor panel: 4 castors with brake + adjustable feet,
- Internal spacing width between the rack rails: 450 mm,
- Spacing width between rack rail openings: 465 mm,
- External width between the rack rails: 500 mm,
- Load capacity: Up to 800 KG,
- Protection class: IP20,
- Ventilation panel: Including 4 fans 230V in the upper housing,
- Door type: Front - hardened glass, Rear - steel
- Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material of construction: High quality rolled steel, powder coated,
- Door thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; rest - 1.50 mm - 1.20 mm,
- Cable openings: Top, Bottom (adjustable),
- Included: Mounting accessories, front and rear door lock, two side panel locks, 20 M6 screws, 2 vertical cable organisers x2.
