Case Type 2U rack | Chipset Intel C620 | Socket LGA4189 | CPU Model Number 4310 | Clock speed 2100 MHz | Installed CPUs 1 | Maximum number of CPUs 2 | 8x3.5" SAS/SATA Hot-swap | Memory type DDR4 | Memory features RDIMM/ECC | Memory slots 16 | RAID PERC H755 SAS Front | NIC No OCP 3.0 mezzanine NIC card, Blank Filler Only | PSU Hot-swap | PSU model code Titanium PSU Configuration | PSU Output Power 1100 Watts | Installed PSUs 2 | Server management iDRAC9, Enterprise (15GEN) | Included Accessories ReadyRails Sliding Rails Without Cable Management Arm

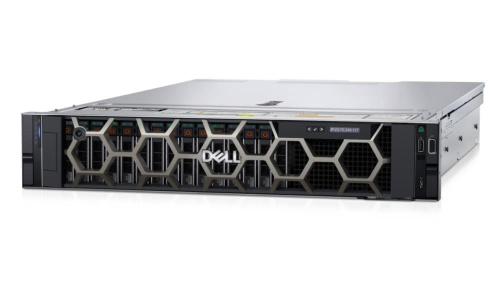

Kirjeldus | PowerEdge R550 Server
Emaplaat with Broadcom 5720 Dual Port 1Gb On-Board LOM, V4
No OCP 3.0 mezzanine NIC card, Blank Filler Only
Intel Xeon Silver 4310 2.1GHz, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W), DDR4-2666
PERC H755 SAS Front
Chassis with up to 8, 3.5" SAS/SATA Hot Plug Hard Drives
2x 16GB RDIMM, 3200MT/s, Dual Rank
1x 480GB SSD SATA Read Intensive 6 Gbps 512 2.5in Hot-plug AG Drive, 3.5in HYB CARR
Dual, Redundant (1+1), Hot-Plug PSU 1100W MM(100-240Vac), Titanium
iDrac9, Enterprise (15GEN)
1x16 LP+ 1x8(x4 link) LP
Standard Fan Cold Swap 2U, V2 x5
TPM 2.0 V3
3Yr ProSupport and Next Business Day Onsite Service
Accessories:
2U Standard Bezel
Ready Rails Sliding Rails Without Cable Management Arm
2x Power Cord C13 to C14, PDU Style, 10 AMP, 2m
Factory Settings:
Performance Optimized
Power Saving BIOS Settings
UEFI BIOS Boot Mode with GPT Partition |
Tootja lehekülg | https://i.dell.com/sites/csdocuments/Product_Docs/en/Dell-EMC-PowerEdge-R550-Technical-Guide.pdf |
Mudel | PowerEdge R550 |
Korpuse standard | 2U rack |
Kiibistik | Intel C620 |
Socket | LGA4189 |
Protsessori mudel | 4310 |
Protsessori kiirus | 2100 MHz |
Paigaldatud protsessorid | 1 |
Maksimaalne protsessorite arv | 2 |
3.5" SAS/SATA käigultvahetuse toetusega | 8 |
SSD maht | 480GB |
SSD konfiguratsioon | 1 |
Mälu | 16 GB |
Mälu konfiguratsioon | 2 |
Mälutüüp | DDR4 |
Mälumooduli tüüp | ECC/RDIMM |
Mälupesad | 16 |
RAID | PERC H755 SAS Front |
NIC-port | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
Toiteplokk | Hot-swap |
PSU mudeli kood | Titanium PSU Configuration |
Toiteplokki väljundvõimsus | 1100 Watts |
Paigaldatud toiteallikad | 2 |
Maksimaalne toiteallikate arv | 2 |
Serveri haldamine | iDRAC9, Enterprise (15GEN) |
Tarvikud komplektis | ReadyRails Sliding Rails Without Cable Management Arm |
Kaal | 25 kg |
Brutokaal | 27.3 kg |
CnCode | 84715000 |
Üksuse kasti laius | 0.665 |
Üksuse kasti pikkus | 0.925 |
Üksuse kasti kõrgus | 0.315 |
Täiskirjeldus | Case Type 2U rack|Chipset Intel C620|Socket LGA4189|CPU Model Number 4310|Clock speed 2100 MHz|Installed CPUs 1|Maximum number of CPUs 2|8x3.5" SAS/SATA Hot-swap|SSD 1|Memory 16 GB|Memory configuration 2|Memory type DDR4|Memory features RDIMM/ECC|Memory slots 16|RAID PERC H755 SAS Front|NIC No OCP 3.0 mezzanine NIC card, Blank Filler Only|PSU Hot-swap|PSU model code Titanium PSU Configuration|PSU Output Power 1100 Watts|Installed PSUs 2|Server management iDRAC9, Enterprise (15GEN)|Included Accessories ReadyRails Sliding Rails Without Cable Management Arm |
Kategooria kood | SER |
