Type Outdoor | Video interface HDCVI | Focal Length 3.6 mm | Lens Mount M12 | Min. Illumination 0.005 Lux | Effective pixels 2880 (H) × 1620 (V) | Electronic Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s | Microphone Built-in | Power supply requirements 12 VDC ± 30% | Colour White | Dimensions φ97.1 mm × 93.8 mm

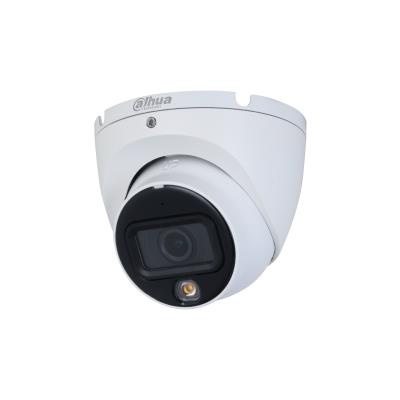

Kirjeldus | "5MP Smart Dual Light HDCVI Fixed-focal Quick-to-install Eyeball Camera
> Max 25 fps@5MP (16:9 video output).
> Smart Dual Light.
> 20 m illumination distance.
> Super Adapt.
> Built-in MIC.
> Quick-to-install eyeball saves installation time.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC."
|
Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Smart-Dual-Light/HAC-HDW1500CLQ-IL-A=S2 |
Mudel | HDW1500CLQ-IL-A-0280B-S2 |
Kaamera disain | Eyeball |
Võrgukaamera tüüp | Outdoor |
Videoliides | HDCVI |
Efektiivseid megapiksleid | 5 Mega Pixel |
Võrgukaamera eraldusvõime | 5 - 7MP |
Objektiivi fokaalvahemik | 3.6 - 4mm |
Objektiivikinnitus | M12 |
Minimaalne valgustus | 0.005 Lux |
Efektiivsed pikslid | 2880 (H) × 1620 (V) |
Elektrooniline säriaeg | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
Mikrofoon | Built-in |
Toitevalikud | 12V |
Toiteadapteri/ploki nõue | 12 VDC ± 30% |
Energiatarbimine | 4.5 Watts |
Keskkond | Outdoor |
Värvus | White |
Mõõtmed (füüsilised parameetrid) | φ97.1 mm × 93.8 mm |
Kaal | 0.19 kg |
Brutokaal | 0.31 kg |
Üksuse kasti laius | 0.12 |
Üksuse kasti pikkus | 0.125 |
Üksuse kasti kõrgus | 0.11 |
Täiskirjeldus | Type Outdoor|Video interface HDCVI|Focal Length 3.6 mm|Lens Mount M12|Min. Illumination 0.005 Lux|Effective pixels 2880 (H) × 1620 (V)|Electronic Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s|Mikrofon Built-in|Power supply requirements 12 VDC ± 30%|Colour White|Dimensions φ97.1 mm × 93.8 mm |
Kategooria kood | HSC |
