Type Fixed/Outdoor/PTZ | Pixel Resolution 4 Mega Pixel | Focal Length 4 mm | Sensor size 1/1.79” Progressive Scan CMOS | Lens Mount M16 | Min. Illumination 0.0005 Lux | Electronic Shutter Speed 1/3 to 1/10000 s | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 16.47 W | Operating temperature range -30–60 °C | Dimensions 119.9 × 171.75 × 203.05 mm
| Kirjeldus | VIGI C540S

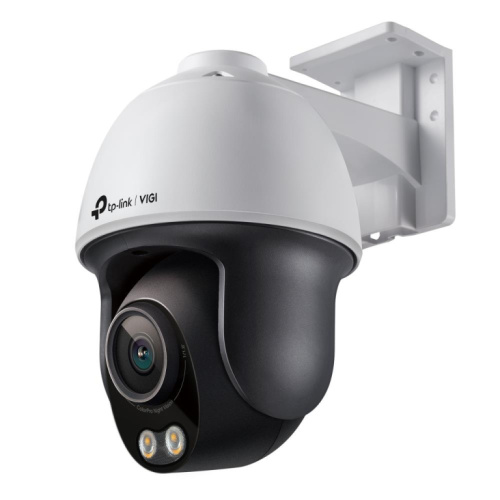

VIGI 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera
- Ultra-Low Light Color Night Vision
- 360° Monitoring and Auto Tracking
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Waterproof and Onboard Storage
|
| Tootja lehekülg | www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540s/ |
| Mudel | VIGI C540S |
| Kaamera disain | Other |
| Võrgukaamera tüüp | Fixed/Outdoor/PTZ |
| Efektiivseid megapiksleid | 4 Mega Pixel |
| Objektiivi fokaalvahemik | 4 mm |
| Sensori suurus | 1/1.79” Progressive Scan CMOS |
| Objektiivikinnitus | M16 |
| Minimaalne valgustus | 0.0005 Lux |
| Elektrooniline säriaeg | 1/3 to 1/10000 s |
| MicroSD kaardipesa | 1 |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 512GB |
| Toitevalikud | 12V/PoE |
| Toiteadapteri/ploki nõue | 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 16.47 W |
| Töötemperatuuri ulatus | -30–60 °C |
| Mõõtmed (füüsilised parameetrid) | 119.9 × 171.75 × 203.05 mm |
| Kaal | 0.7 kg |
| Brutokaal | 1 kg |
| Üksuse kasti laius | 0.16 |
| Üksuse kasti pikkus | 0.21 |
| Üksuse kasti kõrgus | 0.24 |
| Täiskirjeldus | Type Fixed/Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4 mm|Sensor size 1/1.79” Progressive Scan CMOS|Lens Mount M16|Min. Illumination 0.0005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 16.47 W|Operating temperature range -30–60 °C|Dimensions 119.9 × 171.75 × 203.05 mm |
| Kategooria kood | FNC |
