Type Outdoor/PTZ | Pixel Resolution 4 Mega Pixel | Focal Length 4-12 mm | IR Illumination | Sensor size 1/3” Progressive Scan CMOS | Microphone Built-in | Min. Illumination 0.005 Lux | Electronic Shutter Speed 1/3 to 1/10000 s | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W | Environment Outdoor | Operating temperature range -30–60 °C | Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories | Colour White | Dimensions 107× 136× 139 mm

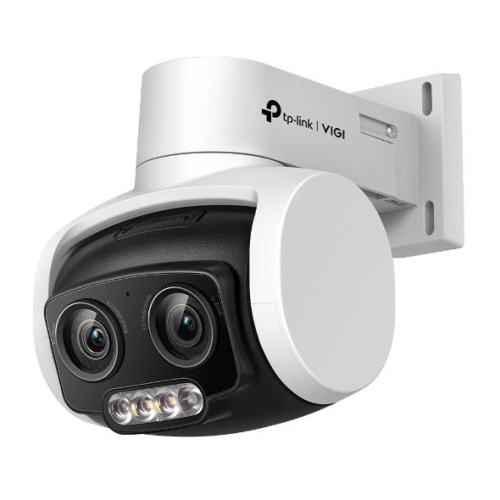

| Kirjeldus | VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
- 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
|
| Tootja lehekülg | www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540v/ |
| Mudel | VIGI C540V |
| Kaamera disain | PT/PTZ |
| Võrgukaamera tüüp | Outdoor/PTZ |
| Efektiivseid megapiksleid | 4 Mega Pixel |
| Objektiivi fokaalvahemik | 4-12 mm |
| IR valgustus | Yes |
| Sensori suurus | 1/3” Progressive Scan CMOS |
| Mikrofoon | Built-in |
| Minimaalne valgustus | 0.005 Lux |
| Elektrooniline säriaeg | 1/3 to 1/10000 s |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 256GB |
| Toitevalikud | 12V/PoE |
| Toiteadapteri/ploki nõue | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| Keskkond | Outdoor |
| Töötemperatuuri ulatus | -30–60 °C |
| Tarvikud komplektis | Quick Start Guide;
Waterproof Cable Attachments;
Mounting Accessories |
| Värvus | White |
| Mõõtmed (füüsilised parameetrid) | 107× 136× 139 mm |
| Kaal | 0.43 kg |
| Brutokaal | 0.7 kg |
| CnCode | 85258900 |
| Üksuse kasti laius | 0.15 |
| Üksuse kasti pikkus | 0.19 |
| Üksuse kasti kõrgus | 0.16 |
| Täiskirjeldus | Type Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4-12 mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Mikrofon Built-in|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories|Colour White|Dimensions 107× 136× 139 mm |
| Kategooria kood | FNC |
