Type HDTV/Megapixel/Outdoor | Video interface HDCVI | Focal Length 2.8 mm | Lens Mount M12 | Min. Illumination 0.001 Lux | Effective pixels 1920 (H) × 1080 (V) | Electronic Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s | Microphone Built-in | Power supply requirements 12 VDC ± 30% | Dimensions φ94.0 × 85.7 mm

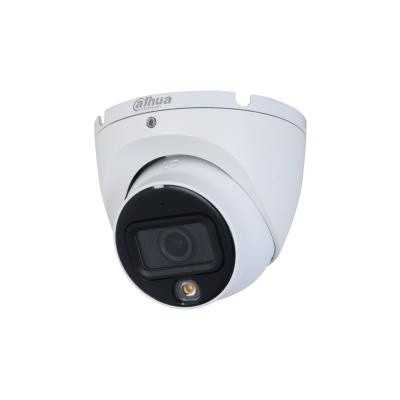

Description | 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
> Max. 30 fps@1080p.
> 3D NR.
> Smart Dual Light.
> 20 m illumination distance.
> Super Adapt.
> Built-in mic.
> 2.8 mm fixed lens
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC
|
Vendor Homepage | www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Smart-Dual-Light/HAC-HDW1200TLM-IL-A=S6 |
Model | HAC-HDW1200TLM-IL-A-0280B-S6 |
Camera design | Eyeball |
Network Camera Type | HDTV/Megapixel/Outdoor |
Video interface | HDCVI |
Pixel Resolution | 2 Mega Pixel |
Net camera resolution | 2 - 4MP |
Focal length | 2.8 mm |
Lens Mount | M12 |
Min. Illumination | 0.001 Lux |
IR Illumination | Yes |
Effective pixels | 1920 (H) × 1080 (V) |
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
Microphone | Built-in |
Power Options | 12V |
Power supply requirements | 12 VDC ± 30% |
Power consumption | 2.6 Watts |
Environment | Outdoor |
Dimensions | φ94.0 × 85.7 mm |
Unit Net Weight | 0.3 kg |
Unit Gross Weight | 0.42 kg |
Full Description Line | Type HDTV/Megapixel/Outdoor|Video interface HDCVI|Focal Length 2.8 mm|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s|Microphone Built-in|Power supply requirements 12 VDC ± 30%|Dimensions φ94.0 × 85.7 mm |
Category Code | HSC |
