Housing material | Metal |
I code | IK10 |
Mounting Type | Ceiling/wall |
Product colour | White |
Protection features | Waterproof |
International Protection (IP) code | IP67 |

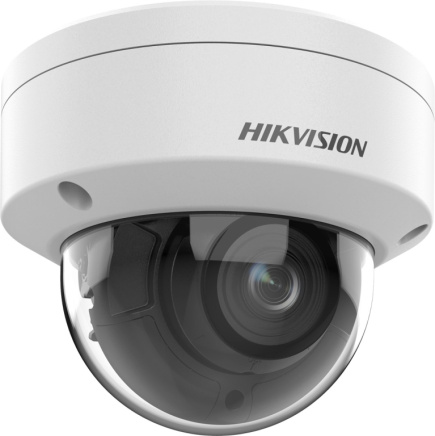

Form factor | Dome |
Power consumption (Power over Ethernet (PoE)) | 12.5 W |
DC output voltage | 12 |
DC output current | 0.88 A |
Power source type | DC, PoE |
Power consumption (max) | 10.56 W |
Active tampering alarm | Yes |
Password reset via email | Yes |
Heartbeat | Yes |
Alarm output channels | 1 |
Alarm input channels | 1 |
Privacy protection | Yes |
PASSWORD PROTECTION | Yes |
IP address filtering | Yes |
Video motion detection | Yes |
Pixel counter | Yes |
Intelligent Video Surveillance (IVS) system features | Face detection |
Mirror | Yes |
HTTPS encryption | Yes |
Flash log | Yes |
Automatic Network Replenishment (ANR) | Yes |
Digest authentication | Yes |
Network access storage (NAS) | Yes |
Audit log | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -30 - 60 °C |
Behavior analysis | Intrusion detection, Line crossing detection |
Web browser | Yes |
Reset button | Yes |
Web-based management | Yes |
Diameter | 12.2 cm |
Weight | 620 g |
Height | 97.6 mm |
Number of users | 32 user(s) |
User access level | Administrator, Operator, User |
Live view | Yes |
Number of simultaneous live view channels | 6 channels |
Networking standards | IEEE 802.1x |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
Quality of Service (QoS) support | Yes |
Bluetooth | No |
Placement supported | Outdoor |
Infrared (IR) cut-off filter | Yes |
Wide Dynamic Range (WDR) | Yes |
Alarm input/output | Yes |
Day/night mode | Yes |
Languages support | Multi |
Number of languages | 33 |
Type | IP security camera |
Connectivity Technology | Wired |
Package width | 150 mm |
Package height | 141 mm |
Package depth | 150 mm |
PACKAGE WEIGHT | 880 g |
Number of Cameras | 1 |
Audio formats supported | PCM |
Signal-to-Noise Ratio (SNR) | 52 dB |
Bit rate range | 8 - 320 Kbit/s |
Audio input channels | 1.0 channels |
Voice Codecs | G.711alaw |
Sample rates | 8 - 48 kHz |
Built-in microphone | Yes |
Audio output channels | 1.0 channels |
Maximum memory card size | 512 GB |
Built-in HDD | No |
COMPATIBLE MEMORY CARDS | MicroSDXC |
Card reader integrated | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Lens viewing angle, diagonal | 128.5 - 34.7° |
Lens viewing angle, horizontal | 106.5 - 30.2° |
Angle of rotation | 355° |
Minimum illumination | 0 lx |
Camera shutter speed | 1/3 - 1/100000 s |
Pan range | 0 - 355° |
Lens viewing angle, vertical | 55.7 - 17° |
Tilt angle range | 0 - 90° |
Number of Privacy masking areas | 8 |
Sensor type | CMOS |
Number of sensors | 1 |
Progressive Scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Bit rate | 32 Kbps - 8 Mbps |
Video compression formats | M-JPEG |
Total megapixels | 4 MP |
Video recording | Yes |
Video formats supported | H.264+ |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Back Light Compensation (BLC) | Yes |
Region of Interest (ROI) encoding | Yes |
Frame rate | 30 fps |
Highlight Compensation (HLC) | Yes |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Privacy masking | Yes |
Image quality adjustment | Brightness |
Video streaming | Yes |
Maximum Resolution | 3840 x 2160 pixels |
Supported graphics resolutions | 640 x 360 |
LED type | IR/White |
Infra-red wavelength | 850 nm |
Night Vision | Yes |
Night vision distance | 40 m |
Observe distance (wide) | 35 m |
Focal length range | 2.8-12 mm |
Recognize distance (tele) | 57.9 m |
Identify distance (tele) | 29 m |
Recognize distance (wide) | 17.7 m |
Detect distance (wide) | 88.3 m |
Number of lenses | 1 |
Observe distance (tele) | 114.9 m |
Maximum aperture number | 1.6 |
Detect distance (tele) | 289.7 m |
Identify distance (wide) | 8.8 m |
Compliance certificates | CB |
