Housing material | Metal |
Form factor | Tube/dome |
International Protection (IP) code | IP67 |
Product colour | Black |
Mounting Type | Ceiling/wall |
DC output voltage | 12 |
Power consumption (typical) | 2.7 W |
Power consumption (max) | 8.4 W |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 9.7 W |
Video motion detection | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -30 - 60 °C |
Web-based management | Yes |
Web browser | Yes |
Depth | 238.5 mm |
Weight | 770 g |
Width | 75.8 mm |
Height | 71.6 mm |
Networking standards | IEEE 802.3af |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Quality of Service (QoS) support | Yes |
Number of users | 20 user(s) |
Bluetooth | No |
Mobile operating systems supported | iOS |
Certification | LVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 2023-03-02 |

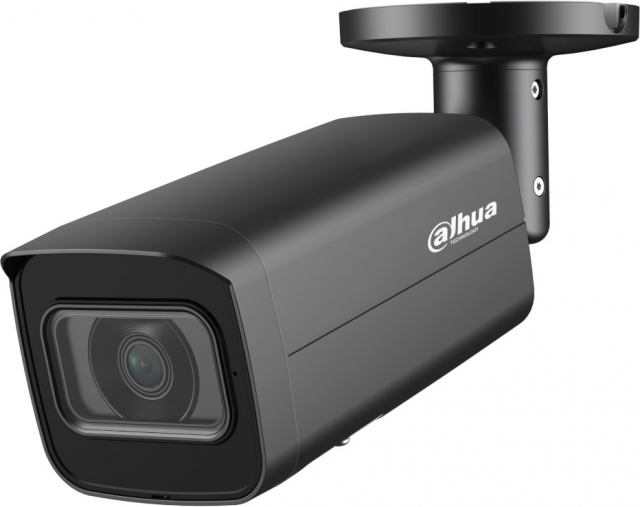

Type | IP security camera |
Connectivity Technology | Wired |
Placement supported | External / Internal |
Wide Dynamic Range (WDR) | 120 dB |
Number of Cameras | 1 |
Audio formats supported | G.726 |
Built-in microphone | Yes |
Built-in HDD | No |
ROM capacity | 128 MB |
INTERNAL MEMORY | 256 MB |
White balance | Auto |
Tilt angle range | 0 - 90° |
Minimum illumination | 0.008 lx |
Camera shutter speed | 1/3 - 1/100000 s |
Pan range | 0 - 360° |
Adjustment shutter speed | Auto/Manual |
Lens viewing angle, vertical | 58° |
Lens viewing angle, horizontal | 113° |
Sensor type | CMOS |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Progressive Scan | Yes |
Number of sensors | 1 |
Supported graphics resolutions | 352 x 240 |
Frame rate | 30 fps |
Noise reduction | Yes |
Maximum Resolution | 3840 x 2160 pixels |
Back Light Compensation (BLC) | Yes |
Video compression formats | H.264H |
Video streaming | Yes |
Gain control type | Auto/Manual |
Bit rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
Noise reduction technology | 3D noise reduction |
Region of Interest (ROI) encoding | Yes |
Total megapixels | 8 MP |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Highlight Compensation (HLC) | Yes |
Number of illumination LEDs | 4 |
LED type | IR |
Night Vision | Yes |
Night vision distance | 60 m |
Closest focusing distance | 0.8 m |
Lens type | Varifocal moto zoom |
Number of lenses | 1 |
Maximum aperture number | 1.5 |
