| Sustainability certificates | REACH |
| I code | IK10 |
| Form factor | Dome |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting Type | Ceiling/wall |
| Product colour | White |
| Power source type | DC, PoE |
| Power consumption (max) | 5 W |
| Power consumption (Power over Ethernet (PoE)) | 6.5 W |
| DC output current | 0.4 A |
| DC output voltage | 12 |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Anti-flicker | Yes |
| PASSWORD PROTECTION | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Intelligent Video Surveillance (IVS) system features | Scene change |
| Video motion detection | Yes |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| WPS push button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Reset button | Yes |
| Web-based management | Yes |
| PACKAGE WEIGHT | 820 g |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 141 mm |
| Diameter | 12.1 cm |
| Weight | 580 g |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Number of users | 32 user(s) |
| Networking standards | IEEE 802.1x |
| Bluetooth | No |
| Certification | FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1)CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006) |
| Wide Dynamic Range (WDR) | Yes |

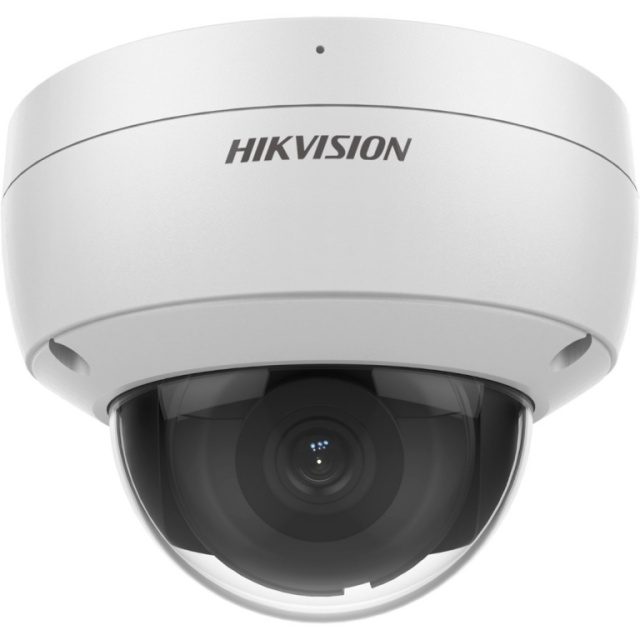

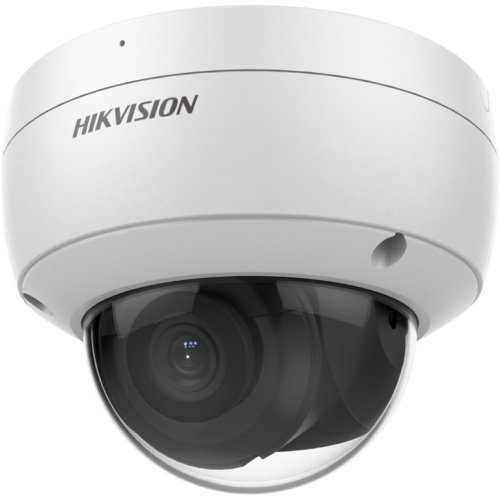

| Type | IP security camera |
| Day/night mode | Yes |
| Number of languages | 33 |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Placement supported | Outdoor |
| Alarm input/output | Yes |
| Connectivity Technology | Wired |
| Number of Cameras | 1 |
| Voice Codecs | G.711alaw |
| Audio formats supported | MP3 |
| Sample Rate | 48 kHz |
| Built-in microphone | Yes |
| COMPATIBLE MEMORY CARDS | MicroSDHC |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Pan range | 0 - 355° |
| Angle of rotation | 355° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera pan control | Yes |
| Lens viewing angle, vertical | 55° |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 123° |
| Lens viewing angle, horizontal | 103° |
| Tilt angle range | 0 - 75° |
| Harmonized System (HS) code | 85258900 |
| Progressive Scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Total megapixels | 4 MP |
| Bit rate | 32 Kbps - 8 Mbps |
| Region of Interest (ROI) encoding | Yes |
| Noise reduction | Yes |
| Video compression formats | H.265 |
| Noise reduction technology | 3D noise reduction |
| Frame rate | 30 fps |
| Image quality adjustment | Contrast |
| Privacy masking | Yes |
| Video streaming | Yes |
| Maximum Resolution | 2688 x 1520 pixels |
| LED type | IR |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
| Night Vision | Yes |
| Recognize distance (wide) | 12 m |
| Maximum aperture number | 1.4 |
| Fixed focal length | 2.8 mm |
| Number of lenses | 1 |
| Identify distance (wide) | 6 m |
