International Protection (IP) code | IP65 |
Form factor | Turret |
Housing material | Plastic |
Mounting Type | Ceiling/Wall/Pole |
Product colour | White |
DC output voltage | 12 |
Power source type | DC |
Security algorithms | WPA2-PSK |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 10 - 95% |
Storage relative humidity (H-H) | 3 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Web browser | Yes |
Reset button | Yes |
Width | 122 mm |
Height | 203 mm |
Depth | 62 mm |
Weight | 527 g |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets |
Wi-Fi | Yes |
Wi-Fi standards | 802.11b |
Bluetooth | No |
Connectivity Technology | Wired & Wireless |
PTZ control | Yes |
Antenna type | Internal |

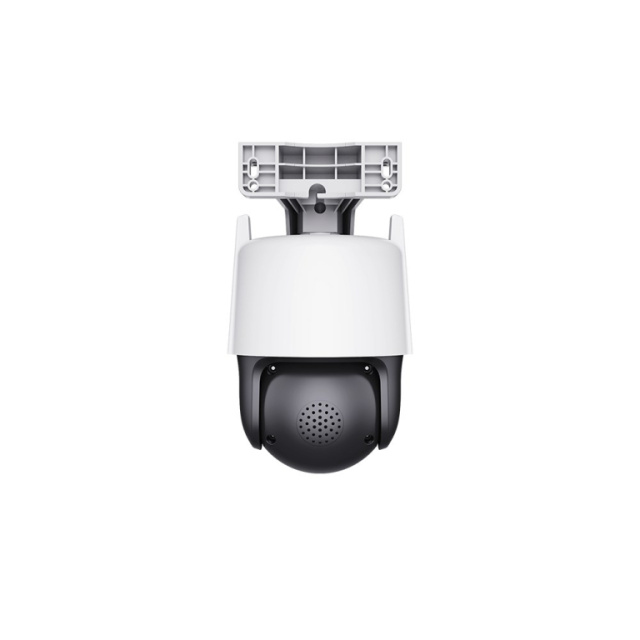

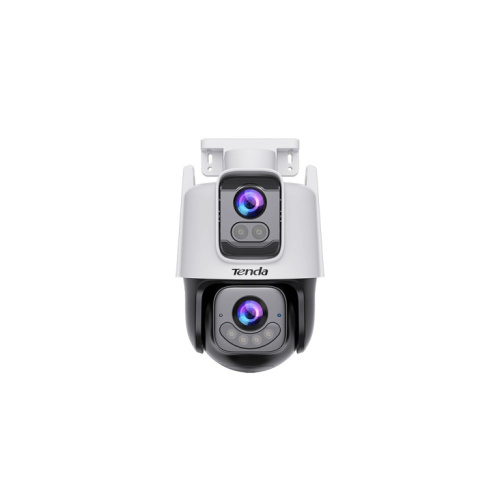

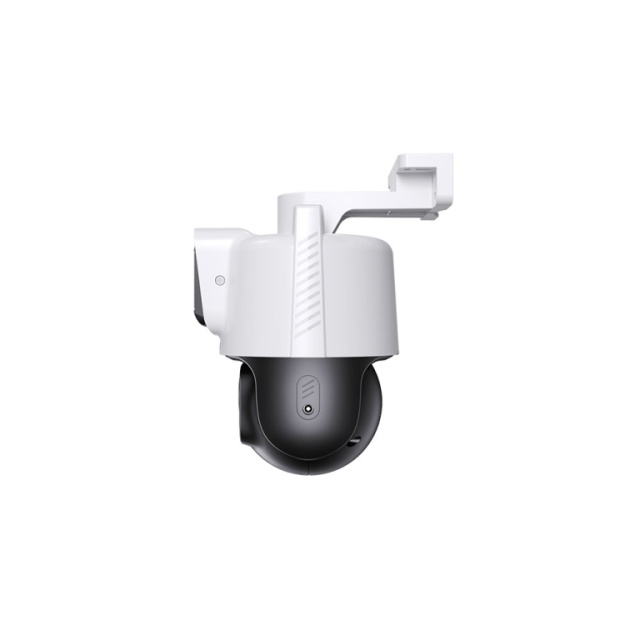

Type | IP security camera |
Placement supported | Outdoor |
PACKAGE WEIGHT | 802 g |
Package height | 193 mm |
Package width | 240 mm |
Package depth | 145 mm |
Number of Cameras | 1 |
Mounting Kit | Yes |
Mounting brackets included | Yes |
Built-in speaker(s) | Yes |
Voice Codecs | AAC |
Built-in microphone | Yes |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Built-in HDD | No |
Maximum memory card size | 512 GB |
Ethernet LAN (RJ-45) ports | 1 |
Tilt angle range | 0 - 90° |
Camera pan control | Yes |
Camera tilt control | Yes |
Viewing angle, diagonal (4mm lens) | 97.4° |
Viewing angle, vertical (4mm lens) | 44.7° |
Viewing angle, diagonal (6mm lens) | 60.4° |
Viewing angle, vertical (6mm lens) | 28.2° |
Viewing angle, horizontal (4mm lens) | 82.3° |
Pan range | 0 - 355° |
Number of Privacy masking areas | 4 |
Viewing angle, horizontal (6mm lens) | 51.8° |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Sensor type | CMOS |
Supported graphics resolutions | 2304 x 1296 |
Noise reduction | Yes |
Digital Wide Dynamic Range (DWDR) | Yes |
Total megapixels | 6 MP |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Back Light Compensation (BLC) | Yes |
Maximum Resolution | 2304 x 1296 pixels |
Highlight Compensation (HLC) | Yes |
Video streaming | Yes |
Noise reduction technology | 3D noise reduction |
Infra-red wavelength | 850 nm |
Night vision distance | 30 m |
LED type | IR |
Night Vision | Yes |
Fixed focal length | 4 mm |
Maximum aperture number | 1.6 |
Number of lenses | 2 |
Compliance certificates | RCM |
Fixed focal length (panoramic camera) | 6 mm |
