storage medium | |
storage capacity | 16 GB |
Supported storage drive interfaces | Serial ATA III |
supported storage drive sizes | 2.5" |
Gesamtkapazität der installierten Systemantriebe | 1000 TB |
Eigenschaft | Nachhaltigkeitskonformität |
RAID Level | 0, 1, 5, 6, 10, F1, JBOD |
Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
Total installed storage capacity | 0 TB |
Number of supported storage drives | 24 |
Supported storage drives | SSD |
processor | D-1541 |
processor manufacturer | Intel |
processor family | Intel® Xeon® D |
processor clock speed | 2,1 GHz |
Processor Boost Frequency | 2,7 GHz |
number of CPU cores | 8 |
processor threads | 16 |
processor cache | 12 MB |
CPU configuration (max) | 1 |
Storage | |
Internal storage type | DDR4 |
Maximum supported RAM | 128 GB |
Memory form factor | RDIMM |
network | |
Ethernet LAN data transfer rates | 10,100,1000,10000 Mbit/s |
Supported Ethernet LAN data rate (max.) | 10000 Mbit/s |
Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
connections and interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 2 |
Number of serial ports | 1 |
Number of Ethernet LAN ports (RJ-45) | 7 |
PCI Express x8 (Gen 3.x) connectors | 2 |
Design | |

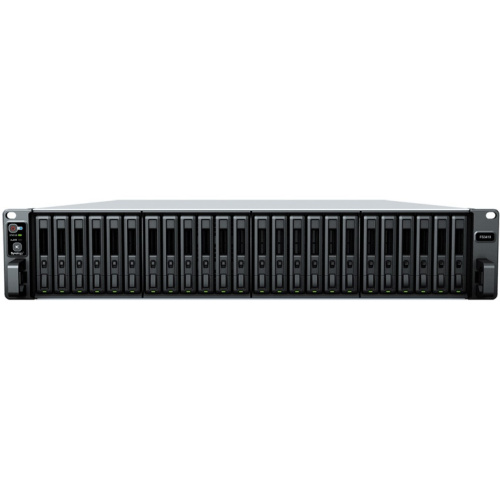

case type | Rack (2U) |
cooling | Aktiv |
Product color | Schwarz |
number of fans | 4 Lüfter |
LED indicators | Status |
Services | |
Type | Speicherserver |
device class | Großunternehmen |
backup functions | Cloud, USB-Stick |
number of users | 16000 Benutzer |
Supported security algorithms | AES |
Supported browser | Google Chrome, Firefox, Microsoft Edge, Safari 13 |
Software | |
Installed operating system | DSM |
version of the operating system | 7,1 |
energy | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
weight and dimensions | |
broad | 430,5 mm |
depth | 692 mm |
height | 88 mm |
Weight | 15 kg |
scope of delivery | |
Supplied cables | AC |
Anzahl Stromkabel | 2 |
Processor specifics | |
Intel® Secure Key Technologieversion | 1,00 |
Intel® TSX-NI-Version | 1,00 |
sustainability | |
operating conditions | |
operating temperatur | 0 - 35 °C |
Operating relative humidity | 8 - 80% |
Storage temperature range | -20 - 60 °C |
humidity during storage | 5 - 95% |
Other functions | |
Konformitätsbescheinigungen | CE, RoHS |
