LED indicators | Link |

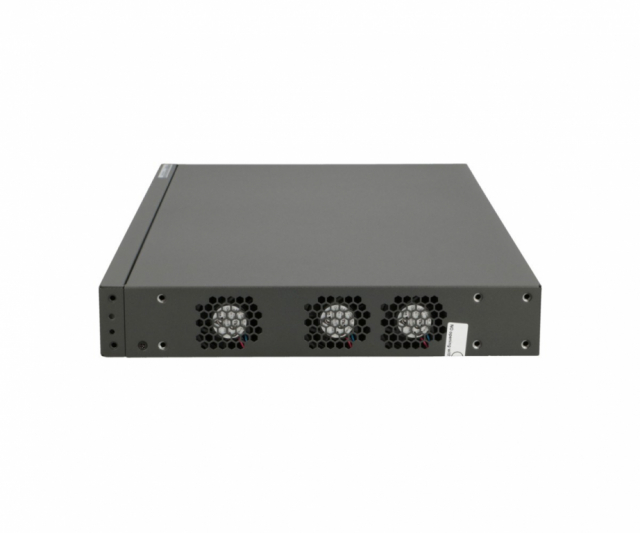

Number of fans | 3 fan(s) |
Rack mounting | Yes |
Housing material | Metal |
Form factor | 1U |
Product colour | Black |
Temperature sensor | Yes |
Stackable | No |
Power source | AC |
Power consumption (max) | 400 W |
Number of power supply units | 1 |
Power supply included | Yes |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
DHCP features | DHCP Option 82 |
IGMP snooping | Yes |
Security algorithms | SNMPv2 |
Operating temperature (T-T) | -20 - 55 °C |
Operating relative humidity (H-H) | 5 - 95% |
Quality of Service (QoS) support | Yes |
Switch type | Managed |
Switch layer | L2/L3 |
System event log | Yes |
Configuring Location Settings (CLI) | Yes |
Web-based management | Yes |
Height | 44 mm |
Width | 440 mm |
Weight | 4 kg |
Depth | 290 mm |
Number of VLANs | 4096 |
Port mirroring | Yes |
10G support | Yes |
Full duplex | Yes |
Link aggregation | Yes |
VLAN support | Yes |
VLAN mapping type | N:1 VLAN mapping |
Networking standards | IEEE 802.3ab |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Built-in processor | Yes |
Rack mount kit | Yes |
CABLES INCLUDED | AC |
Package Type | Box |
IPv4 & IPv6 features | IPv6 Telnet |
Gigabit Ethernet (copper) ports quantity | 24 |
Fiber optic connector | SFP+ |
Power connector | AC-in jack |
Installed SFP+ modules quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
MAC Address Table | 16384 entries |
Switching capacity | 128 Gbit/s |
Jumbo Frames support | Yes |
Throughput | 96 Mpps |
Power over Ethernet (PoE) ports quantity | 24 |
Power Over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 24 |
Power over Ethernet (PoE) type supported | Active PoE |
Power over Ethernet (PoE) power per port | 30 W |
Multicast support | Yes |
