Certification | FCC, CE |
Product colour | Black |
Housing material | Metal |

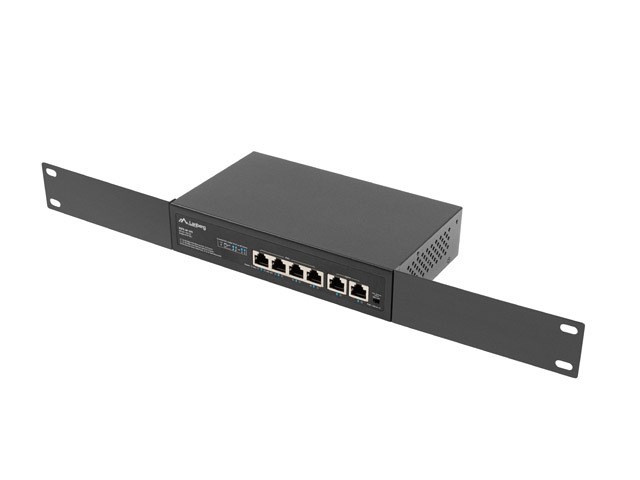

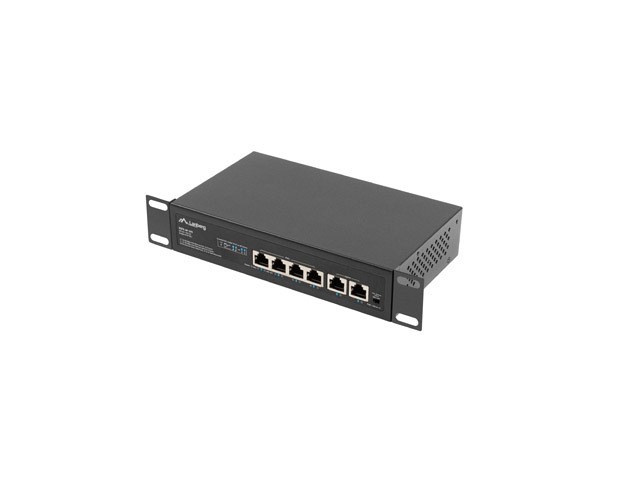

Rack mounting | Yes |
LED indicators | Yes |
Form factor | 1U |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 65 W |
Operating relative humidity (H-H) | 0 - 85% |
Storage temperature (T-T) | -10 - 70 °C |
Switch type | Unmanaged |
Width | 200 mm |
Height | 44.5 mm |
Depth | 118 mm |
Networking standards | IEEE 802.3at |
Auto MDI/MDI-X | Yes |
MAC address auto-learning supported | Yes |
Full duplex | Yes |
Flow control support | Yes |
Auto-negotiation | Yes |
Copper ethernet cabling technology | 100BASE-TX |
MAC address auto-aging supported | Yes |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Basic switching RJ-45 Ethernet ports quantity | 6 |
Switching capacity | 1.2 Gbit/s |
MAC Address Table | 1024 entries |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Power Over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 60 W |
