LED indicators | Yes |
Product colour | Black |
Stackable | No |
Rack mounting | No |
Input current | 0.6 A |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power source | DC |
Input voltage | 9 V |
Power consumption (max) | 2.47 W |
Power supply included | No |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 8.22 BTU/h |
Storage relative humidity (H-H) | 5 - 90% |
Switch type | Unmanaged |
Width | 165 mm |
Depth | 108 mm |
Height | 28 mm |
Half duplex | Yes |
Networking standards | IEEE 802.3x |
MAC address auto-aging supported | Yes |
10G support | No |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Flow control support | Yes |
MAC address auto-learning supported | Yes |
Full duplex | Yes |
Compatible operating systems | Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10, MacOS, NetWare, UNIX, Linux |
Maximum cable length | 100 m |
Fanless | Yes |
Quick start guide | Yes |
PACKAGE WEIGHT | 180 g |
Package width | 108 mm |
Package depth | 145 mm |
Package height | 85 mm |

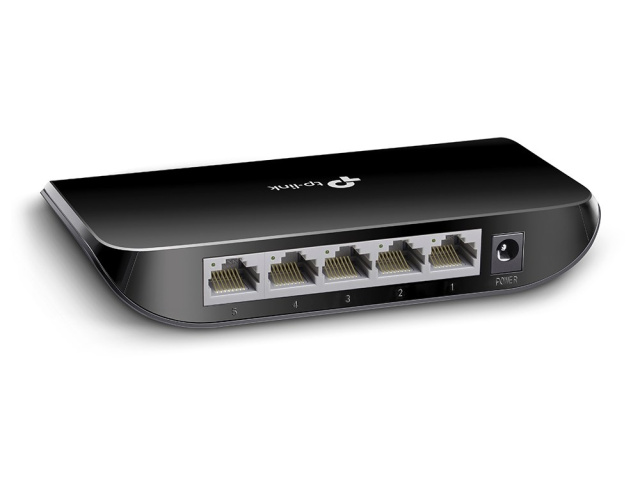

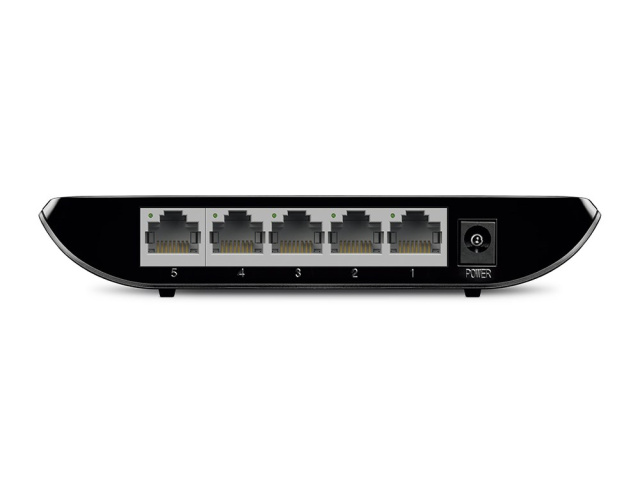

Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 5 |
Power connector | DC-in jack |
Harmonized System (HS) code | 85176990 |
MAC Address Table | 8000 entries |
Jumbo Frames support | Yes |
Switching capacity | 10 Gbit/s |
Jumbo frames | 15000 |
Store-and-forward | Yes |
Power Over Ethernet (PoE) | No |
