Certification | CE, FCC, RoHS |
Product colour | Black |
LED indicators | Yes |
Power supply included | Yes |
Power consumption (max) | 71.61 W |
Power source | DC/PoE |
DC input voltage | 53.5 V |
Input current | 1.31 A |
AC input frequency | 50 Hz |
AC input voltage | 220 V |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 243.47 BTU/h |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Quality of Service (QoS) support | Yes |
Switch type | Unmanaged |
Depth | 99 mm |
Width | 158 mm |
Height | 25 mm |
Cable types supported | Cat5 |
Auto-negotiation | Yes |
10G support | No |
Networking standards | IEEE 802.3z |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Package Type | Box |
User guide | Yes |

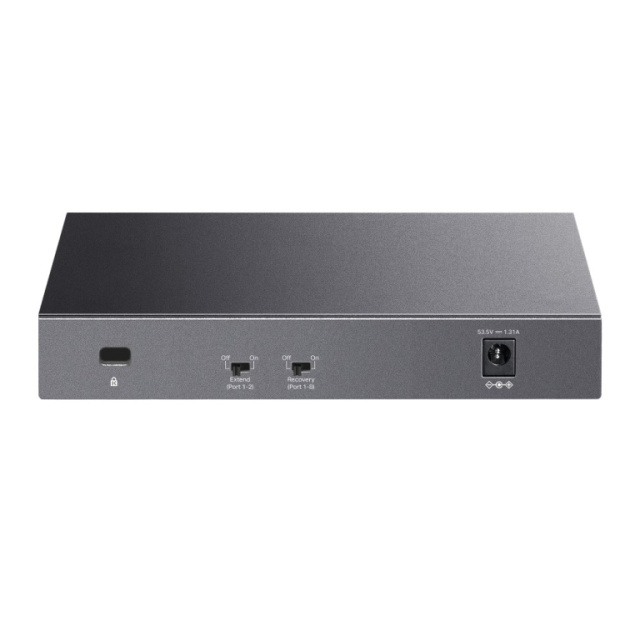

Power connector | DC-in jack |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Switching capacity | 16 Gbit/s |
Forwarding rate | 11.9 Mpps |
MAC Address Table | 4000 entries |
Jumbo frames | 16000 |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 62 W |
Power Over Ethernet (PoE) | Yes |
