Product colour | Black |
Form factor | 1U |

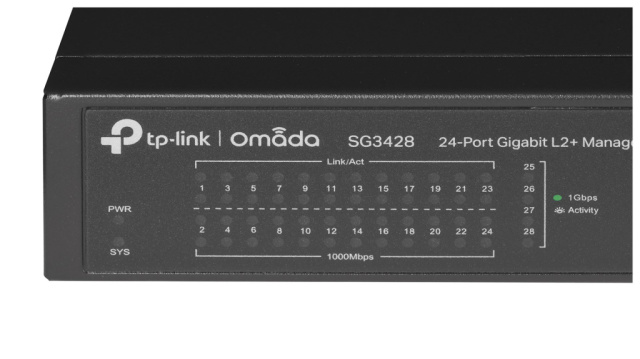

LED indicators | Yes |
Rack mounting | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power source | AC |
Power supply included | No |
Power consumption (max) | 20.6 W |
MAC address filtering | Yes |
Authentication | MAC-based authentication, Port-based authentication |
SSH/SSL support | Yes |
DHCP features | DHCPv6 snooping |
Access Control List (ACL) | Yes |
Loop protection | Yes |
IGMP snooping | Yes |
Static port security | Yes |
BPDU filtering/protection | Yes |
IP-MAC-Port binding | Yes |
Authentication type | AAA, RADIUS, TACACS+ |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 45 °C |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 70.3 BTU/h |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
System event log | Yes |
Switch layer | L2/L3 |
MIB support | Yes |
Switch type | Managed |
Cloud-managed | Yes |
ARP inspection | Yes |
Configuring Location Settings (CLI) | Yes |
Width | 440 mm |
Height | 44 mm |
Depth | 180 mm |
Networking standards | IEEE 802.3u |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Port mirroring | Yes |
10G support | No |
Spanning tree protocol | Yes |
Link aggregation | Yes |
VLAN support | Yes |
IP routing | Yes |
Number of VLANs | 4000 |
Flow control support | Yes |
Broadcast storm control | Yes |
Virtual LAN features | Tagged VLAN |
Rate limiting | Yes |
IPv6 routes | 48 |
Policy-based routing | Yes |
IPv4 routes | 48 |
Head-of-line (HOL) blocking | Yes |
Quick start guide | Yes |
CABLES INCLUDED | LAN (RJ-45) |
Management protocols | SNMPv1/v2c/v3, SNTP |
IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
GARP VLAN Registration Protocol (GVRP) | Yes |

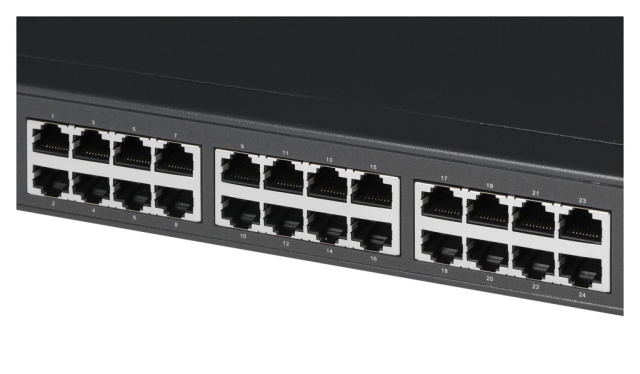

Gigabit Ethernet (copper) ports quantity | 24 |

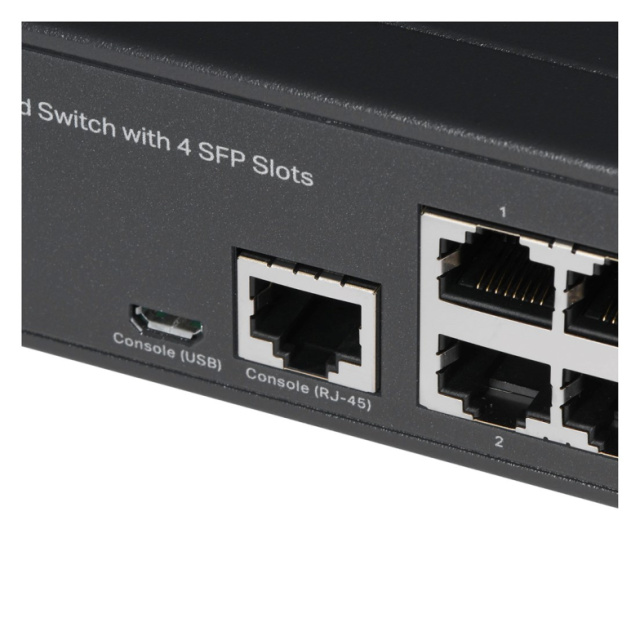

console port | RJ-45/Micro-USB |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 24 |
SFP module slots quantity | 4 |
Store-and-forward | Yes |
Packet buffer memory | 12 MB |
Jumbo Frames support | Yes |
MAC Address Table | 16000 entries |
Forwarding rate | 41.66 Mpps |
Switching capacity | 56 Gbit/s |
Static route | Yes |
Jumbo frames | 9000 |
Number of static routes | 48 |
Power Over Ethernet (PoE) | No |
Multicast Listener Discovery (MLD) snooping | Y |
Multicast support | Yes |
