HARDWARE FEATURES

Interface

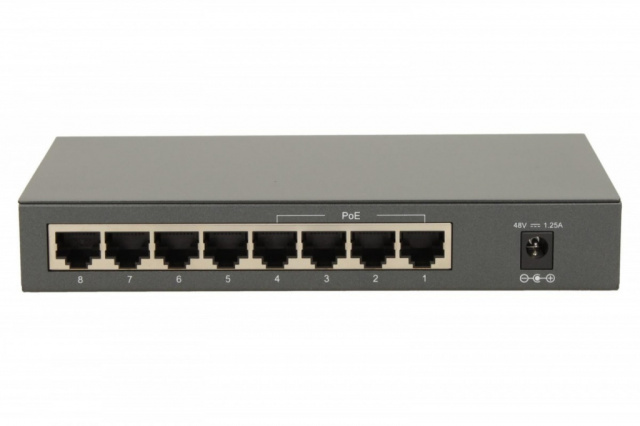

8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 53W
Backbound Bandwidth 1.6Gbps
Mac Address Table1K
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H) 6.7*3.9*1.1 in. (171*98*27 mm)

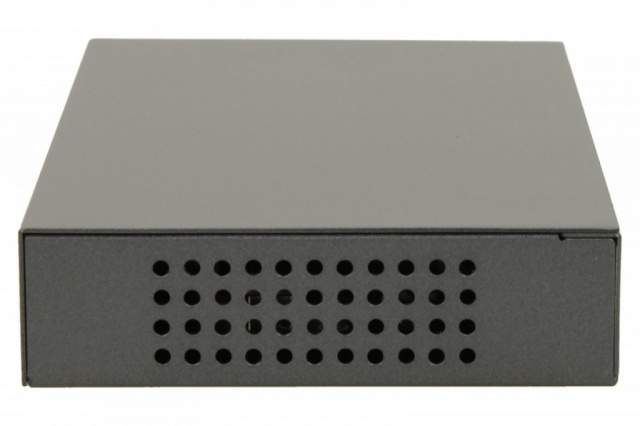

Fan Quantity Fanless

SOFTWARE FEATURES

Transmission Method Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS
Package Contents

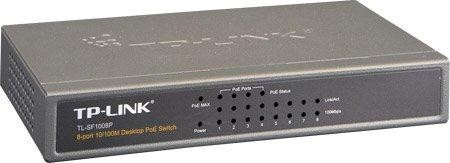

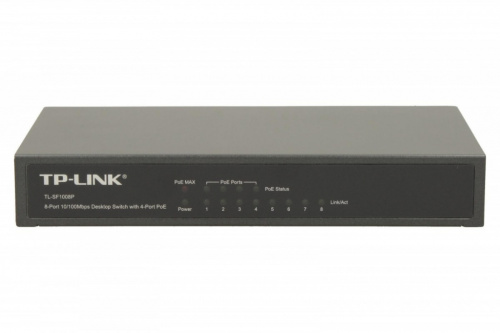

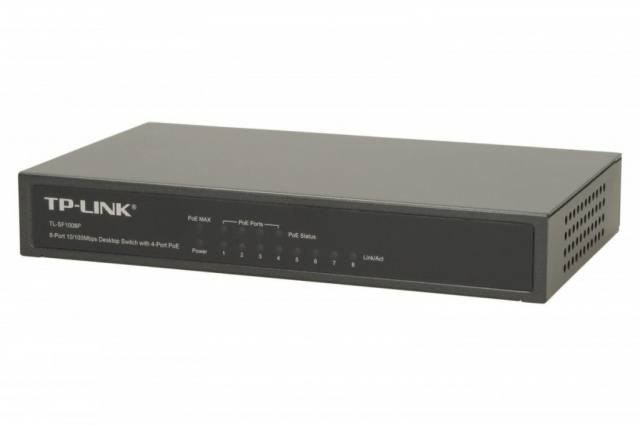

TL-SF1008P, Power Adapter, User Guide
Consumption
5.8 watts (max. no PD connected)
58.8 watts (max. with 53w PD connected)
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
