WAN connection | |
Eigenschaft | Eingebauter Prozessor |
WAN connection type | RJ-45 |
Wireless LAN functions | |
WiFi band | Dual-Band (2,4 GHz/5 GHz) |
Top WLAN-Standard | Wi-Fi 7 (802.11be) |
WLAN data transfer rate (max.) | 2882 Mbit/s |
WLAN data transfer rate (first band) | 688 Mbit/s |
WLAN data transfer rate (second band) | 2882 Mbit/s |
network | |
Interface type Ethernet LAN | Gigabit Ethernet |
Ethernet LAN data transfer rates | 10,100,1000,2500 Mbit/s |
connections and interfaces | |

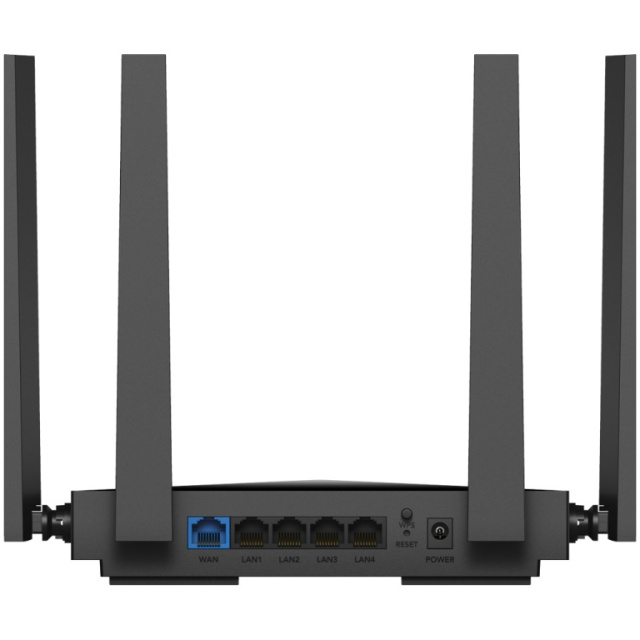

Number of Ethernet LAN ports (RJ-45) | 5 |
management functions | |
safety | |
Supported security algorithms | WPA, WPA2, WPA3 |
Design | |
Product color | Schwarz |
LED indicators | LAN, Leistung, WAN, WLAN |
product type | Tabletop-Router |
certificates | |
Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC) |

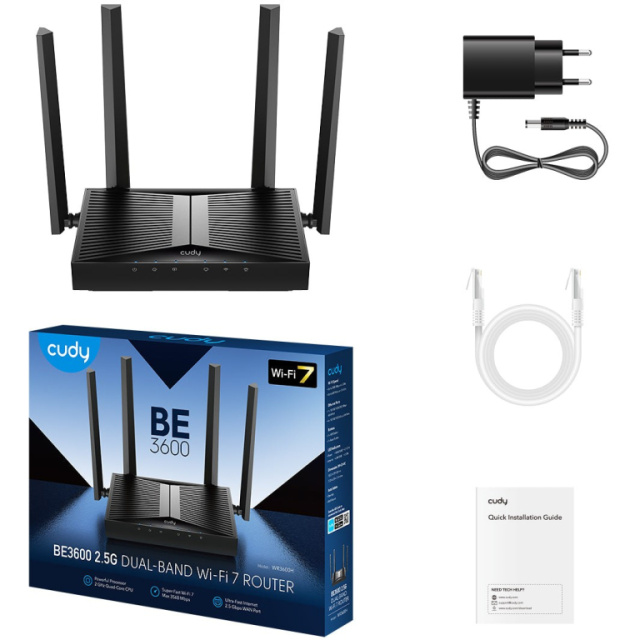

scope of delivery | |
Supplied cables | LAN (RJ-45) |
Antenna | |
The Antenna Design | Extern |
antenna type | 2x2 |
Antenna gain level (max) | 5,5 dBi |
number of antennas | 4 |
features | |
processor architecture | ARM Cortex A7 |
processor clock speed | 2000 MHz |
number of CPU cores | 4 |
storage capacity | 512 MB |
Flash memory | 128 MB |
energy | |
energy source | Gleichstrom |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
output voltage | 12 V |
output current | 1 A |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -40 - 70 °C |
Operating relative humidity | 10 - 90% |
humidity during storage | 5 - 90% |
weight and dimensions | |
broad | 183,3 mm |
depth | 109 mm |
height | 38 mm |
Weight | 332 g |
