Antenna gain level (max) | 5 dBi |
Component for | PC |
Antenna direction type | Omni-directional |
Antenna | Yes |
Internal | Yes |
Antenna design | External |
Storage temperature (T-T) | -10 - 80 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 70 °C |
Width | 65 mm |
Height | 1.6 mm |
Depth | 44.5 mm |
Bluetooth Version | 5.2 |
Networking standards | IEEE 802.11ac |
Bluetooth | Yes |
Maximum data transfer rate | 2400 Mbit/s |
Wi-Fi standards | 802.11a |
WLAN data transfer rates supported | 2402 Mbit/s |
Security algorithms | WPA3 |
Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
LAN controller | Intel AX210 |
Spread Spectrum Method | OFDMA |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Windows operating systems supported | Windows 11 |
Quick installation guide | Yes |
Mounting brackets included | Yes |
Resource CD | Yes |
Bluetooth header cable | Yes |
PCI Card form factor | Full-height (low-profile) |
Interface | WLAN / Bluetooth |
Host Interface | PCI Express |
Connectivity Technology | Wireless |

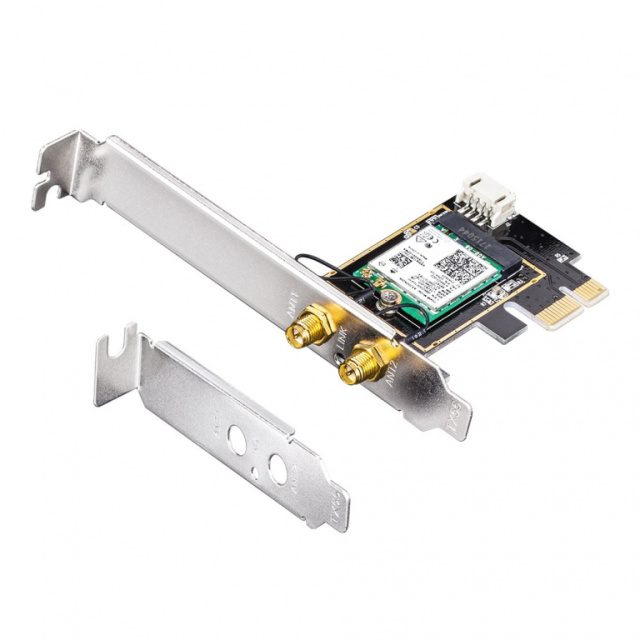

Bracket height | Low-Profile (LP) / Full-Height (FH) |
Warnings | The product contains electronic components and should not be disposed of in the regular rubbish bin. |
