Compliance certificates | Federal Communications Commission (FCC) |
Receiver sensitivity | 5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm |
Product colour | Black |
Component for | PC |
Internal | Yes |
Transmitting power (CE) | 23 dBm |
Chipset | Intel Wi-Fi 6 |
Antenna design | External |
Antenna | Yes |
Transmitting power (FCC) | 27 dBm |
Operating modes | Infrastructure mode |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Width | 95.2 mm |
Height | 21.5 mm |
Depth | 120.8 mm |
WLAN data transfer rates supported | 54 |
Modulation | OFDM |
Networking standards | IEEE 802.11ax |
Security algorithms | WPA |
Bluetooth | Yes |
Maximum data transfer rate | 2402 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Frequency range | 2.4 - 5 GHz |
Wi-Fi standards | 802.11g |
Wi-Fi | Yes |
Bluetooth Version | 5.0 |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Windows operating systems supported | Windows 10 Education x64 |
Package height | 47 mm |
Package width | 270 mm |
Package depth | 215 mm |
PACKAGE WEIGHT | 480 g |

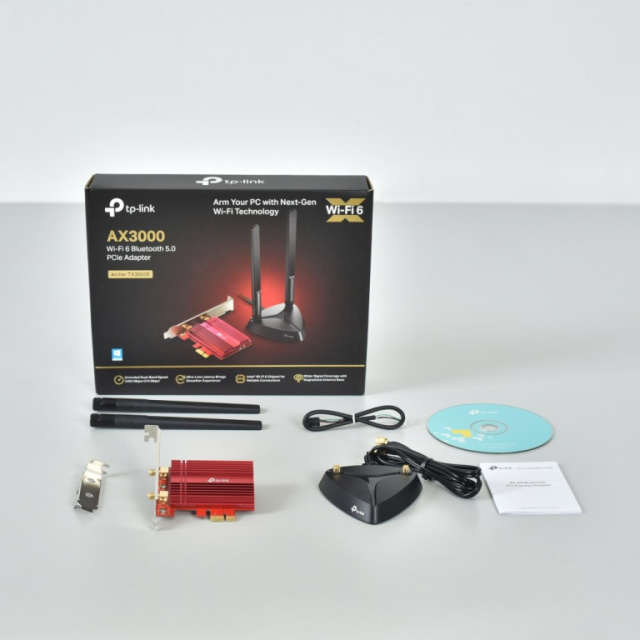

Quick installation guide | Yes |
Bluetooth header cable | Yes |
Resource CD | Yes |
Mounting brackets included | Yes |
Connectivity Technology | Wireless |
Interface | WLAN / Bluetooth |
Host Interface | PCI Express |
Harmonized System (HS) code | 85176990 |
Sustainability compliance | Yes |
