Auto-restart | Yes |
Waveform | Pseudo sine |
Automatic Voltage Regulation (AVR) | Yes |
UPS topology | Line-Interactive |
Output frequency | 50 Hz |
Output voltage regulation | 10% |
Surge protection | Yes |
Power protection features | Battery discharge |
Surge protection features | Digital Subscriber Line (DSL) |
Noise level | 40 dB |
Input operation voltage (max) | 290 V |
Number of input phases | 1 |
Audible alarm(s) | Yes |
Input Frequency | 50 Hz |
Input operation voltage (min) | 162 V |
Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
Number of output phases | 1 |
Output Power | 600 W |
Output Power Capacity | 0.6 kVA |
Power factor | 0.6 |
Transfer time (Line Mode to Battery Mode) | 2 ms |
LED indicators | Yes |
Product colour | Black |
Form factor | Tower |

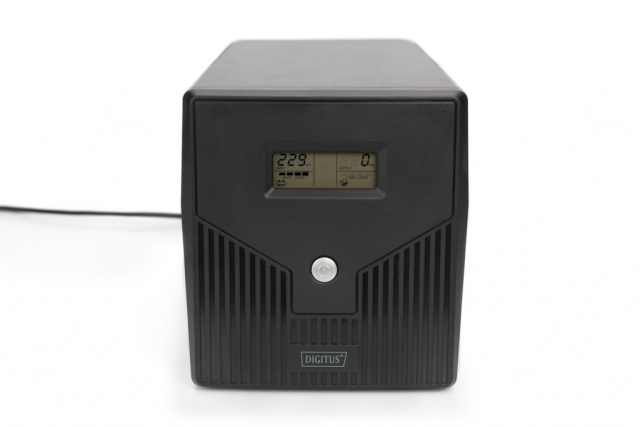

Display type | LCD |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 0 - 95% |
Weight | 7.8 kg |
Height | 162 mm |
Width | 150 mm |
Depth | 338 mm |
Package volume | 18273.6 cm³ |
Package width | 235 mm |
Package height | 192 mm |
Ethernet LAN (RJ-45) ports | 2 |
AC outlets quantity | 4 AC outlet(s) |
USB 2.0 ports quantity | 1 |
USB Port | Yes |
Serial ports quantity | 1 |
Power plug | Type F |
RS-232 ports | 1 |
Serial interface type | RS-232 |
Serial interface | Yes |
USB port type | USB Type-B |
Battery capacity | 7 Ah |
Battery voltage | 12 V |
Cold start | Yes |
Number of batteries supported | 2 |
Battery recharge time (90%) | 6 h |

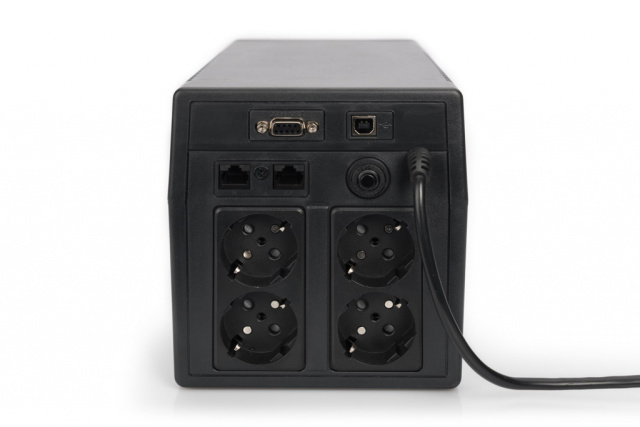

Output Connections | 4 x CEE 7/7 |
Nominal Output Voltage | 230 V |
Nominal input voltage | 230 V |
Harmonized System (HS) code | 85078000 |
UK Trade Tariff code | 85044085 |
Warnings | Do not disassemble the unit housing, there may be a risk of electric shock. |
