Sustainability certificates | CE |
Sustainability compliance | Yes |
Output frequency | 50/60 Hz |
Efficiency (ECO mode) | 96.5% |
Audible alarm(s) | Yes |
Output power factor | 0.9 |
Output Power Capacity | 2 kVA |
UPS topology | Double-conversion (Online) |
Efficiency | 91% |
Output Power | 1800 W |
Waveform | Sine |
Number of output phases | 1 |
Noise level | 45 dB |
Output operation voltage (min) | 220 V |
Input Frequency | 40/70 Hz |
Input power factor | 99 |
Heat dissipation | 546 BTU/h |
Input operation voltage (min) | 140 V |
Number of input phases | 1 |
Power source type | AC |
Output operation voltage (max) | 240 V |
Input operation voltage (max) | 276 V |
Certification | IEC/EN 62040-1
IEC/EN 62040-2
CE |
Rack capacity | 2U |
Control Type | Buttons |
Product colour | Black |
Form factor | Tower |
Display type | LCD |
LED indicators | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 0 - 96% |
Width | 438 mm |
Depth | 608 mm |
Weight | 29.9 kg |
Height | 86.5 mm |
CABLES INCLUDED | Output power cable, USB cable |
Quick installation guide | Yes |
Rack mount kit | Yes |

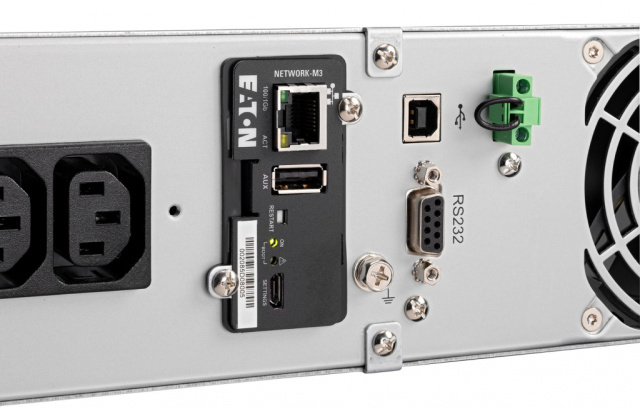

Serial ports quantity | 1 |
USB Port | Yes |
AC outlets quantity | 6 AC outlet(s) |
AC outlet types | C13 coupler |
RS-232 ports | 1 |
Serial interface | Yes |
Serial interface type | RS-232 |
Power plug | C13 coupler |
Battery capacity | 7 Ah |
Number of batteries supported | 6 |
Battery voltage | 12 V |
Battery Technology | Lead-Acid |
Typical backup time at full load | 4.5 min |
Typical backup time at half load | 12 min |
