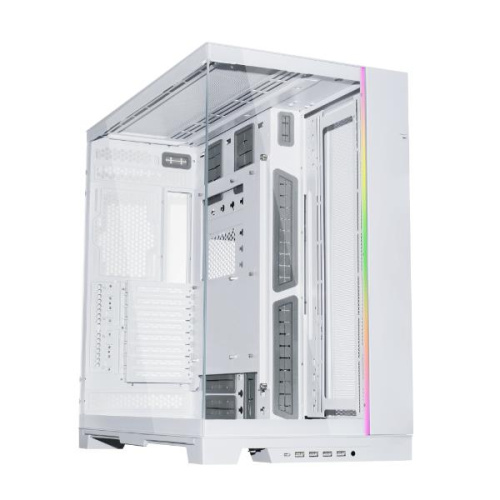

| Description | Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to Motherboard.
FINE MESH, EQUISITE TOUCH Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis. - Bottom - Nylon Fine Dust filter Tray - Top and Side – Magnetic Dust Filter
COMPLETE SEEMLESS VIEW The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION The adjustable Motherboard tray can move up and down with three levels of height to fit different fan and radiator combination. The Motherboard tray supports a maximum of E-ATX (width 280mm) Motherboard.
TOOL-LESS INSTALLATION Easily secure the graphics card. Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS Equipped with quick-release design, the fan brackets can be easily removed or installed.
RELOCATABLE I/O PORT To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
FRIENDLY STORAGE CAPACITY Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
WITH WATER COOLING IN MIND Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
CUSTOMIZABLE CABLE MANAGEMENT The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.Full-tower chassis with two modes: Normal Mode/ Reverse ModeFront and side tempered glass panels with a removable pilar for a seamless view of components and RGB lightingSupports up to 3x 420mm radiators and a maximum of 11 fansOffers mounting space for 7 storage drivesDual-chamber layout with cable management compartment and three cable holdersFeatures a multi-directional power button and movable IO moduleOptional accessories for vertical GPU or upright GPU mounting |
| Summary | Lian Li O11 Dynamic EVO XL. Form factor: Tower, Type: PC, Product colour: Белый. Side fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 304 mm, Depth: 522 mm, Height: 531.9 mm |
| Страница производителя | https://lian-li.com/product/o11-dynamic-evo-xl/ |
| Код категории | CAS |
| Высота коробки блока | 0.66 |
| Длина коробки блока | 0.63 |
| Ширина коробки блока | 0.41 |
| Противопылевой фильтр | Yes |
| Стандарт (Форм фактор) | Tower |
| Освещение | Yes |
| Цвет подсветки | Blue/Green/Red |
| Материал | Aluminium/Steel/Tempered glass |
| Максимальная высота процессорного кулера | 167 mm |
| Максимальная длина видеокарты | 460 mm |
| Максимальная длина блока питания | 220 mm |
| Количество слотов расширения | 8 |
| Кнопка включения/выключения | Yes |
| Цвет продукта | Белый |
| Кнопка сброса | Yes |
| Боковое окно | Yes |
| Поддерживаемые форм-факторы материнских плат | ATX/EATX/micro ATX/Mini-ITX |
| Панель(и) из закаленного стекла | Yes |
| Тип | PC |
| Комбинированный порт для наушников/микрофона | Yes |
| USB 3.0 | 4 |
| Поддерживаемые диаметры нижних вентиляторов | 120/140 mm |
| Bottom radiator sizes supported | 240/280/360/420 mm |
| Количество поддерживаемых нижних вентиляторов (макс.) | 3 |
| Количество поддерживаемых задних вентиляторов (макс.) | 2 |
| Количество поддерживаемых боковых вентиляторов (макс.) | 3 |
| Количество поддерживаемых основных вентиляторов (макс.) | 3 |
| Поддерживаемые диаметры задних вентиляторов | 120 mm |
| Поддерживаемые диаметры боковых вентиляторов | 120/140 mm |
| Side radiator sizes supported | 240/280/360/420 mm |
| Поддерживаются верхние диаметры вентиляторов | 120/140 mm |
| Поддерживаются верхние размеры радиаторов | 240/280/360/420 mm |
| Комбинированная корзина HDD/SSD | Yes |
| Форм-фактор твердотельного накопителя | 2.5" |
| Поддерживаемые размеры жестких дисков | 2.5/3.5 " |
| Гарантийный срок | 1 year(s) |
| Глубина (толщина) | 522 mm |
| Высота | 531.9 mm |
| Ширина | 304 mm |
| Название модели | O11 DYNAMIC EVO XL |
| Модель | O11DEXL-W Белый |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1705 cubm |
| Unit Calculated Weight | 14.8 kg |
