AMD B550 | SAM4 | Micro-ATX | DDR4 | 4866/4800/4600/4466/4400/4333/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 4.0 16x | 2xM.2 | 1x15pin D-sub | 1xDVI-D | 1xHDMI | 2xAudio-In | 1xAudio-Out | 6xUSB 3.2 | 1xPS/2 | 1xRJ45 | SATA | Bluetooth | WiFi | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10 | TPM Header

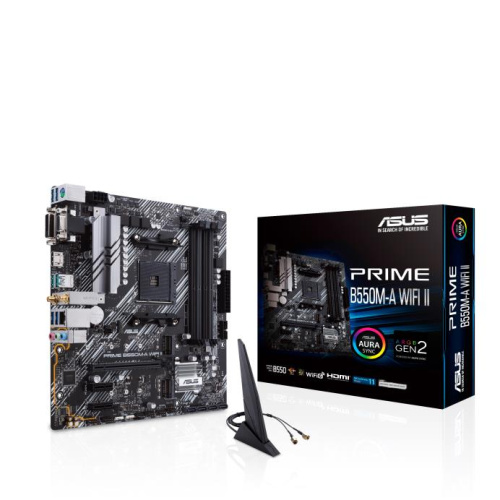

Description | PRIME B550M-A WIFI II
AMD B550 (Ryzen AM4) micro ATX Motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support
AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware |
Страница производителя | www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B550M-A-WIFI-II/ |
Чипсет | AMD B550 |
Сокет | SAM4 |
Стандарт (Форм фактор) | Micro-ATX |
Тип памяти | DDR4 |
Частота шины памяти | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4800/4866 MHz |
Слоты под память | 4 |
М.2 | 2 |
PCI-Экспресс 3.0 1x | 2 |
PCI-Экспресс 4.0 16x | 1 |
15-контактный разъем D-sub | 1 |
Аудио-вход | 2 |
Аудио-выход | 1 |
DVI-D | 1 |
HDMI | 1 |
PS/2 | 1 |
RJ45 | 1 |
USB 3.2 | 6 |
Bluetooth | Yes |
САТА | Yes |
Вай-фай | Yes |
Встроенная видеоарта | Depending on CPU |
Встроенная аудиокарта | Yes |
Интегрированная сетевая карта | Gigabit |
RAID | SATA 0, 1, 10 |
TPM-модуль | Header |
Аксессуары идущие в комплекте | 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package |
Вес | 0.7 kg |
Вес брутто | 1.18 kg |
Ширина коробки блока | 0.27 |
Длина коробки блока | 0.28 |
Высота коробки блока | 0.07 |
Полное подробное описание | AMD B550|SAM4|Micro-ATX|DDR4|4866/4800/4600/4466/4400/4333/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|6xUSB 3.2|1xPS/2|1xRJ45|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header |
Код категории | MBA |
