AMD B550 | SAM4 | ATX | DDR4 | 4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz | Memory slots 4 | 3xPCI-Express 3.0 1x | 1xPCI-Express 3.0 2x | 1xPCI-Express 4.0 16x | 2xM.2 | 1xDVI-D | 1xHDMI | 2xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 4xUSB 3.2 | 1xPS/2 | 1xRJ45 | SATA | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10 | TPM Header
Description | AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
|
Страница производителя | www.gigabyte.com/Motherboard/B550-GAMING-X-V2-rev-13#kf |

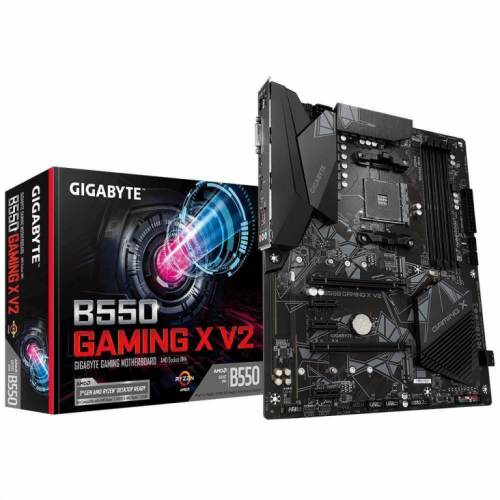

Модель | B550 GAMING X V2 (rev. 1.3) |
Чипсет | AMD B550 |
Сокет | SAM4 |
Стандарт (Форм фактор) | ATX |
Тип памяти | DDR4 |
Частота шины памяти | 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
Слоты под память | 4 |
М.2 | 2 |
PCI-Экспресс 3.0 1x | 3 |
PCI-Экспресс 3.0 2x | 1 |
PCI-Экспресс 4.0 16x | 1 |
Аудио-вход | 2 |
Аудио-выход | 1 |
DVI-D | 1 |
HDMI | 1 |
PS/2 | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
USB 3.2 | 4 |
САТА | Yes |
Встроенная видеоарта | Depending on CPU |
Встроенная аудиокарта | Yes |
Интегрированная сетевая карта | Gigabit |
RAID | SATA 0, 1, 10 |
TPM-модуль | Header |
Вес | 1.4 kg |
Вес брутто | 1.48 kg |
Ширина коробки блока | 0.27 |
Длина коробки блока | 0.34 |
Высота коробки блока | 0.08 |
Полное подробное описание | AMD B550|SAM4|ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header |
Код категории | MBA |
