NVIDIA | Graphics processor GeForce RTX 5060 Ti | CUDA cores 4608 | Memory 16 GB | Graphics card memory type GDDR7 | 128 bit | PCI Express 5.0 | 1xHDMI | 3xDisplay ports | Cooling type Active

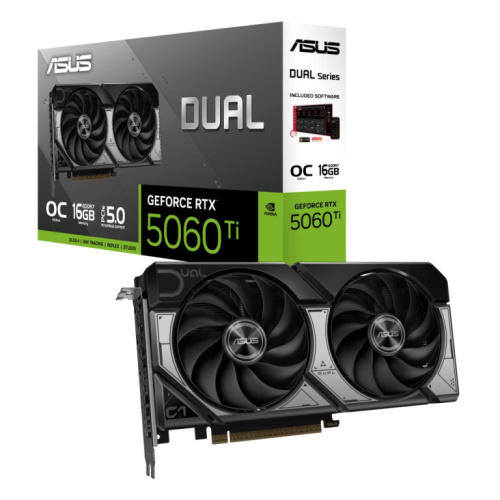

Description | DUAL GEFORCE RTX™ 5060 Ti Dual Fans, Perfect Fit ASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big. You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling 2.5-slot Design A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan Bearings Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented Backplate A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. |
Summary | ASUS Dual -RTX5060TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
Страница производителя | https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060ti-o16g/ |
Код категории | VGP |
CnCode | 84718000 |
Высота коробки блока | 0.07 |
Длина коробки блока | 0.369 |
Ширина коробки блока | 0.222 |
ЧУДЕСА | Yes |
CUDA ядра | 4608 |
Графический процессор | GeForce RTX 5060 Ti |
Микроархитектура графического процессора | NVIDIA |
Максимальное количество дисплеев на видеокарту | 4 |
Максимальное разрешение | 7680 x 4320 pixels |
Поддержка технологии параллельной обработки | Not supported |
Тактовая частота процессора (Турбо) | 2602 MHz |
Частота процессора (режим OC) | 2632 MHz |
Скорость передачи данных | 28 Gbit/s |
Дискретная память видеокарты | 16 GB |
Тип памяти видеокарты | GDDR7 |
Ширина шины памяти | 128 bit |
Версия DisplayPort | 2.1b |
Количество портов DisplayPorts | 3 |
Количество портов HDMI | 1 |
HDMI-версия | 2.1b |
Тип интерфейса | PCI Express 5.0 |
HDCP | Yes |
HDCP-версия | 2.3 |
NPU performance up to | 767 TOPs |
Версия OpenGL | 4.6 |
Overclocked (OC) edition | Yes |
встроенный ТВ-тюнер | No |
Технология охлаждения | ASUS Axial-tech |
Тип системы охлаждения | Active |
Количество вентиляторов | 2 fan(s) |
Количество слотов | 2.5 |
Цвет продукта | Черный/Grey |
SFF ready | Yes |
Минимальное питание системы | 550 W |
Дополнительные разъемы питания | 1x 8-pin |
Глубина (толщина) | 50 mm |
Высота | 120 mm |
Длина (Глубина) | 229 mm |
Масса продукта | 656 g |
Глубина упаковки | 219 mm |
Высота пакета | 67 mm |
Тип упаковки | Box |
Вес в упаковке | 1116 g |
Ширина упаковки | 364 mm |
Manual | Yes |
Модель | DUAL-RTX5060TI-O16G |
Units per Shipping Box | 8 |
Unit Calculated Volume | 0.006912 cubm |
Product Net Weight | 0.6 kg |
Unit Calculated Weight | 1.26 kg |
