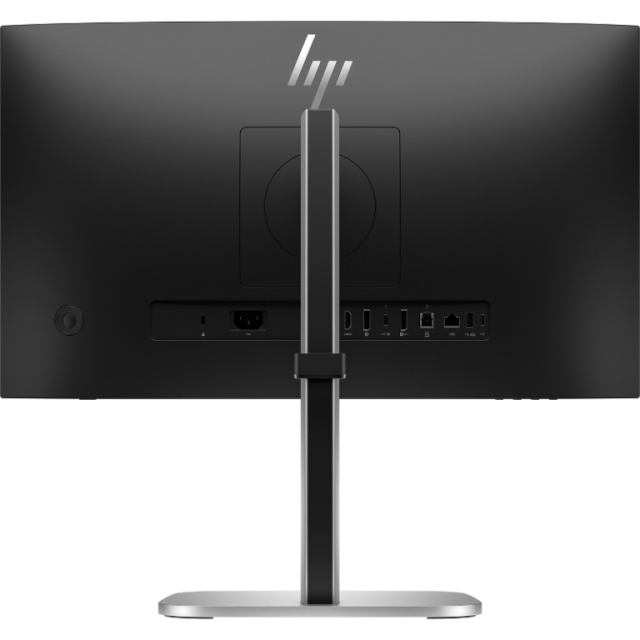

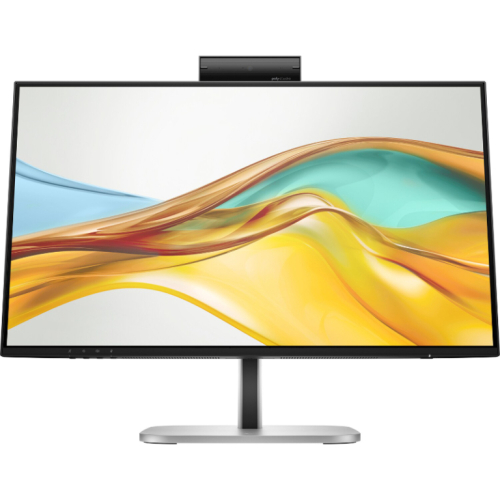

HP 524pm Series 5 Pro FHD Conferencing Monitor - 23.8" 1920x1080 FHD 350-nit 100Hz AG, IPS, USB-C(100W/15W)/HDMI/DP Daisy-Chain, 3x USB-A, speakers, webcam, RJ-45 LAN, height adjust/tilt/swivel/pivot, 3 years (replaces E24m)
Product Highlights | - Look and sound your best with a Poly Studio 5MP WEBCAM, AI Noise Reduction, and Auto Lock and Awake to keep your business your own.
|
Display diagonal | 60.5 cm (23.8") |
Display resolution | 1920 x 1080 pixels |
HD type | Full HD |
Native Aspect Ratio | 16:9 |
Display Technology | LCD |
Panel type | IPS |
LED backlight | Yes |
Backlight type | Edge-Lit |
Touchscreen | No |
Display brightness (typical) | 350 cd/m² |
Response time | 5 ms |
Response time measurement type | GTG (Gray to Gray) |
Display surface | Matt |
Anti-glare screen | Yes |
Screen shape | Flat |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
Aspect Ratio | 16:9 |
Contrast ratio (typical) | 1500:1 |
Contrast ratio (dynamic) | 10000000:1 |
Maximum refresh rate | 100 Hz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Response time (fast) | 5 ms |
Pixel Pitch | 0.27 x 0.27 mm |
Pixel Density | 93 ppi |
Horizontal scan range | 30 - 115 kHz |
Vertical scan range | 50 - 100 Hz |
Viewable size, horizontal | 52.7 cm |
Viewable size, vertical | 29.6 cm |
Viewable size diagonal | 6.05 cm |
Display diagonal (metric) | 60.5 cm |
Haze rate | 25% |
Surface hardness | 3H |
Colour depth | 8 bit |
Colour gamut standard | sRGB |
Colour gamut | 100% |
sRGB coverage (typical) | 100% |
Display bezel technology | Micro-Edge |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Fast charging | Yes |
Flicker-free technology | Yes |
Low Blue Light technology | Yes |
Infrared (IR) sensor | Yes |
Number of speakers | 4 |
RMS rated power | 12 W |
Built-in speaker(s) | Yes |
Megapixel (approx.) | 5 MP |
Built-in microphone | Yes |
Built-in camera | Yes |
Market positioning | Office |
Product colour | Black |
Detachable stand | Yes |
Feet colour | Silver, Black |
Built-in USB hub | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Number of USB Type-B upstream ports quantity | 1 |
USB Type-A downstream ports quantity | 3 |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Power Delivery (USB PD) | Yes |
HDMI | Yes |
HDMI ports quantity | 1 |
HDMI version | 2.0 |
DisplayPorts quantity | 1 |
DisplayPort out quantity | 1 |
DisplayPort out version | 1.4 |
DisplayPort version | 1.4 |
Audio Input | Yes |
Audio output | Yes |
Headphone out | Yes |
Headphone outputs | 1 |
Headphone connectivity | 3.5 mm |
Built-in KVM switch | Yes |
HDCP | Yes |
Ethernet LAN | Yes |
Remotely operated | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Cable lock slot | Yes |
HEIGHT ADJUSTMENT | Yes |
Adjustable height (max) | 15 cm |
Pivot | Yes |
corner swivel | -90 - 90° |
Swivelling | Yes |
Swivel angle range | -45 - 45° |
Tilt adjustment | Yes |
Tilt angle range | -5 - 23° |
On Screen Display (OSD) | Yes |
Energy efficiency class (SDR) | D |
Energy efficiency class (HDR) | D |
Energy consumption (SDR) per 1000 hours | 14 kWh |
Power consumption (typical) | 33 W |
Power consumption (standby) | 0.5 W |
Power consumption (max) | 223 W |
Power consumption (off) | 0.3 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power supply type | Internal |
Energy efficiency scale | A to G |
Operating temperature (T-T) | 5 - 35 °C |
Operating relative humidity (H-H) | 5 - 95% |
Storage relative humidity (H-H) | 20 - 80% |
Width (with stand) | 539.4 mm |
Depth (with stand) | 189.5 mm |
Height (with stand) | 503.2 mm |
Weight (with stand) | 9.5 kg |
Width (without stand) | 212.4 mm |
Depth (without stand) | 18.6 mm |
Height (without stand) | 123.7 mm |
Weight (without stand) | 4.99 kg |
Package width | 621 mm |
Package depth | 140 mm |
Package height | 393 mm |
PACKAGE WEIGHT | 9.5 kg |
Package Type | Box |
CABLES INCLUDED | AC, DisplayPort, USB Type-A to USB Type-B |
Quick start guide | Yes |
Bundled software | HP Display Center; HP Client Management Script Library |
Product condition | Original |
Manufacturer Datasheet | https://www.tdbaltic.ee/leaflets/HP/9E0G9UT%23ABB.pdf |
