screen | |
Panel-Typ | TN |
screen size | 38,1 cm (15") |
screen technology | LED |
Display resolution | 1024 x 768 Pixel |
brightness | 350 cd/m² |
HD-Typ | XGA |
Eigenschaft | Plug & Play |
Touchscreen Technology | Projizierts Kapazitivsystem |
Number of simultaneous touchpoints | 10 |
Native Aspect Ratio | 4:3 |
reaction time | 8 ms |
contrast ratio | 800:1 |
angle of view, horizontal | 160° |
angle of view, vertical | 150° |
pixels spacing | 0,297 x 0,297 mm |
Glasdicke | 6 mm |
connections and interfaces | |
Number of HDMI ports | 1 |
Number of DisplayPort connections | 1 |
Design | |
Unterstützte Positionierung | Horizontal/Vertikal |
Product color | Schwarz |
screen shape | Flach |

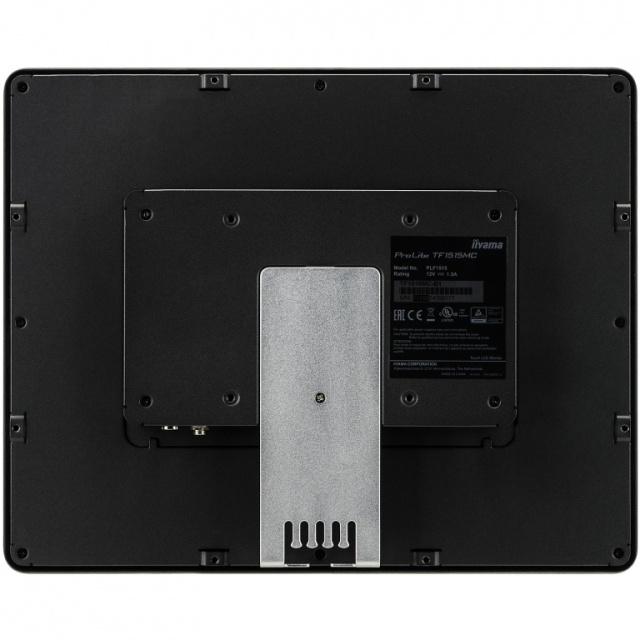

Panel mounting interface | 100 x 100 mm |
Services | |
Number of OSD languages | 7 |
menu languages | Vereinfachtes Chinesisch, Deutsch, Englisch, Spanisch, Französisch, Italienisch, Japanisch |
International degree of protection (IP code) | IP65 |
energy | |
Power consumption (standard operation) | 16 W |
Power consumption (standby) | 1,2 W |
power consumption (off) | 1,2 W |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1,000 hours | 10 kWh |
energy efficiency scale | A bis G |
computer system | |
package weight | 4,6 kg |
scope of delivery | |
Supplied cables | AC, DisplayPort, HDMI, USB |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -20 - 60 °C |
certificates | |
certification | CB, CE, TÜV-Bauart, EAC, cULus |
logistic data | |
Goods tariff number (HS) | 85285210 |
sustainability | |
features | |
Other functions | |
Maximum refresh rate | 75 Hz |
aspect ratio | 4:3 |
Display, visible area WxH | 304,1 x 228,1 mm |
Height (without stand) | 41,5 mm |
Gewicht (ohne Standfuß) | 2,9 kg |
Depth (without stand) | 291 mm |
power supply type | AC/DC |
