screen | |
Panel-Typ | VA |
screen size | 39,6 cm (15.6") |
screen technology | LCD |
Display resolution | 1920 x 1080 Pixel |
brightness | 1100 cd/m² |
HD-Typ | Full HD |
Eigenschaft | Fernbedienung enthalten |
Touchscreen Technology | Projizierts Kapazitivsystem |
Number of simultaneous touchpoints | 10 |
Native Aspect Ratio | 16:9 |
reaction time | 25 ms |
contrast ratio | 800:1 |
angle of view, horizontal | 178° |
angle of view, vertical | 178° |
Number of colors of the display | 16,2 Millionen Farben |
pixels spacing | 0,179 x 0,179 mm |
Active display area (W x H) | 345,2 x 194,6 mm |
screen size (cm) | 39,5 cm |
Horizontal scan area | 31,5 - 67,5 kHz |
Wiederholfrequenz | 60 Hz |
surface hardness | 7H |
Glasdicke | 3,5 mm |

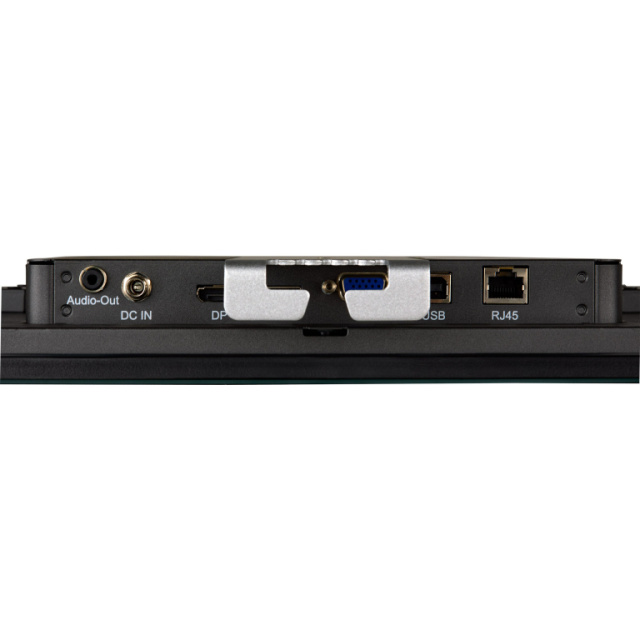

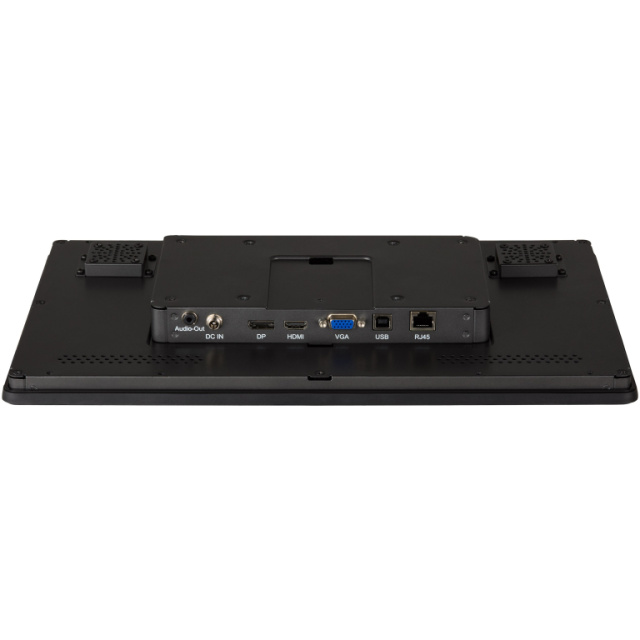

connections and interfaces | |
Number of HDMI ports | 1 |
Number of HDMI input interfaces | 1 |
VGA (D-Sub) input connectors | 1 |
Number of DisplayPort connections | 1 |
Number of Ethernet LAN ports (RJ-45) | 1 |
Design | |
product design | Digital Signage Flachbildschirm |
Unterstützte Positionierung | Drinnen |
alignment | Horizontal/Vertikal |
Product color | Schwarz |
screen shape | Flach |
Panel mounting interface | 100 x 100 mm |
Services | |
purpose | Universal |
Number of OSD languages | 7 |
menu languages | Vereinfachtes Chinesisch, Traditionelles Chinesisch, Deutsch, Englisch, Spanisch, Französisch, Italienisch, Japanisch |
International degree of protection (IP code) | IP65 |
Mean Time Between Failures (MTBF) | 60000 h |
energy | |
Power consumption (standard operation) | 24 W |
Power consumption (standby) | 1,5 W |
power consumption (off) | 0,3 W |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1,000 hours | 11 kWh |
energy efficiency scale | A bis G |
weight and dimensions | |
Displaybreite | 398,5 mm |
display depth | 42 mm |
display height | 246 mm |
Display weight | 3 kg |
package weight | 4,62 kg |
scope of delivery | |
Supplied cables | AC, DisplayPort, HDMI, USB |
operating conditions | |
operating temperatur | -20 - 60 °C |
certificates | |
certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
