23.8 " | 1920 x 1080 pixels | Full HD | 16:9 | LCD | IPS | 8 ms | Flat | Contrast 1000:1 | Maximum refresh rate 120 Hz | Pixel pitch 0.2745 x 0.2745 mm | 1xHDMI ports quantity | 2xDisplayPorts quantity | Headphone out Yes | VESA Yes
| Description | Experience improved visual comfort, enhanced productivity and extensive connectivity with this monitor certified by TÜV for 4-star eye comfort.60.5cm (23.8") Full HD 1920 x 1080 Edge LED IPS8ms, 16:9, 250cd/m², 1000:1USB, HDMI, DisplayPortActual configuration might differ from illustration
Product Carbon Footprint (PCF):
1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com. |

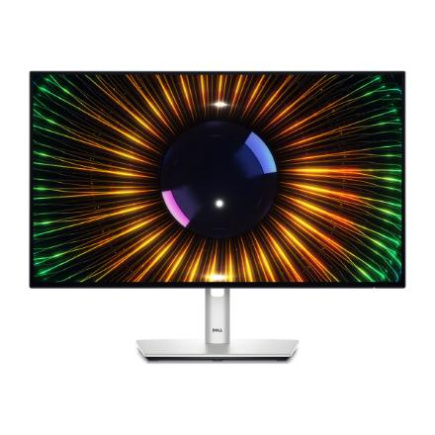

| Summary | DELL UltraSharp U2424H_WOST. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black, Silver |
| Vendor Homepage | https://www.dell.com/en-uk/shop/ |
| Category Code | LC3 |
| Unit Box Height | 0.442 |
| Unit Box Length | 0.722 |
| Unit Box Width | 0.14 |
| Anti-glare screen | Yes |
| Backlight type | Edge LED |
| Colour gamut | 85 % |
| Colour gamut standard | DCI-P3 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 23.8 " |
| Display diagonal (metric) | 60.47 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display Technology | LCD |
| HD type | Full HD |
| High Dynamic Range (HDR) supported | No |
| Horizontal scan range | 31 - 135 kHz |
| Maximum refresh rate | 120 Hz |
| Native Aspect Ratio | 16:9 |
| Panel type | IPS |
| Pixel Density | 92.53 ppi |
| Pixel Pitch | 0.2745 x 0.2745 mm |
| Response time | 8 ms |
| Response time (fast) | 5 ms |
| Screen shape | Flat |
| sRGB coverage (typical) | 100 % |
| Supported graphics resolutions | 1024 x 768 (XGA)/1152 x 864 (XGA+)/1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1600 x 900/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 400/720 x 480/800 x 600 (SVGA) |
| Supported video modes | 1080i/1080p/480p/576p/720p |
| Surface hardness | 3H |
| Touchscreen | No |
| Vertical scan range | 48 - 120 Hz |
| Viewable size diagonal | 604.7 mm |
| Viewable size, horizontal | 527.04 mm |
| Viewable size, vertical | 296.46 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Feet colour | Silver |
| Front bezel colour | Black |
| Market positioning | Business |
| Product colour | Black,Silver |
| AC (power) in | Yes |
| Built-in USB hub | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDCP version | 1.4 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
| Microphone in | No |
| Number of USB Type-C upstream ports quantity | 1 |
| PC Audio in | No |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| USB upstream port type | USB Type-C |
| Wi-Fi | No |
| Adjustable height (max) | 150 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| HEIGHT ADJUSTMENT | Yes |
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 100 x 100 mm |
| Pivot | Yes |
| corner swivel | -90 - 90 ° |
| Swivel angle range | -45 - 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21 ° |
| VESA mounting | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1591641 |
| Input current | 1.5 A |
| Power consumption (max) | 72 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 13.7 W |
| Power supply type | Internal |
| Non-operating altitude | 5000 - 12192 m |
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Bezel width (bottom) | 8.95 mm |
| Bezel width (side) | 5.8 mm |
| Bezel width (top) | 5.8 mm |
| Depth (without stand) | 181.75 mm |
| Height (without stand) | 496.53 mm |
| Weight (without stand) | 3520 g |
| Width (without stand) | 538.64 mm |
| CABLES INCLUDED | AC/DisplayPort/USB Type-A to USB Type-C |
| DisplayPort cable length | 1.8 m |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Remote control included | No |
| Stand included | No |
| Stylus included | No |
| Doesn't contain | PVC/BFR |
| Sustainability certificates | ENERGY STAR/TCO |
| Sustainability compliance | Yes |
| Carbon emissions, end-of-life (kg of CO2e) | 3.52 |
| Carbon emissions, energy usage (kg of CO2e) | 104.36 |
| Carbon emissions, logistics (kg of CO2e) | 30.54 |
| Carbon emissions, manufacturing (kg of CO2e) | 350.87 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 117 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 384.64 |
| Total carbon footprint (kg of CO2e) | 489 |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury) |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1591641/fiches?language=EN |
| Energy Efficiency Class | F |
| EPREL Registration Number | 1591641 |
| EPREL Version Number | 2 |
| Model | U2424H |
| Included Accessories | 1 x Power Cable
1 x DisplayPort 1.4 Cable - 1.8 m
1 x USB Type-A to USB Type-C Gen 2 Cable - 1 m |
| Unit Calculated Volume | 0.0446774 cubm |
| Product Net Weight | 3.5 kg |
| Unit Calculated Weight | 6.4 kg |
