processor | N100 |
processor manufacturer | Intel |
number of CPU cores | 4 |
processor threads | 4 |
Processor Boost Frequency | 3,4 GHz |
Eigenschaft | Treiber enthalten |
processor cache | 6 MB |
Thermal Design Power (TDP) | 6 W |
Storage | |
memory type | SO-DIMM |
Number of memory slots | 1 |
RAM memory maximum | 16 GB |
Supported memory speed | 4800 MHz |
Supported memory | DDR5-SDRAM |
memory channels | Einfach-Kanal |
memory voltage | 1.1 V |
storage medium | |
Supported storage drives | HDD & SSD |
supported storage drive sizes | 2.5,M.2 |
storage drive interface | PCI Express, Serial ATA III |
Number of supported storage drives | 2 |
graphic | |
graphics card family | Intel |
Eingebautes Grafikkartenmodell | Intel® UHD Graphics |
Separates Grafikkartenmodell | Nicht verfügbar |
Maximum resolution | 4096 x 2160 Pixel |
Number of displays supported | 3 |
network | |
LAN-Controller | Intel I226-LM |

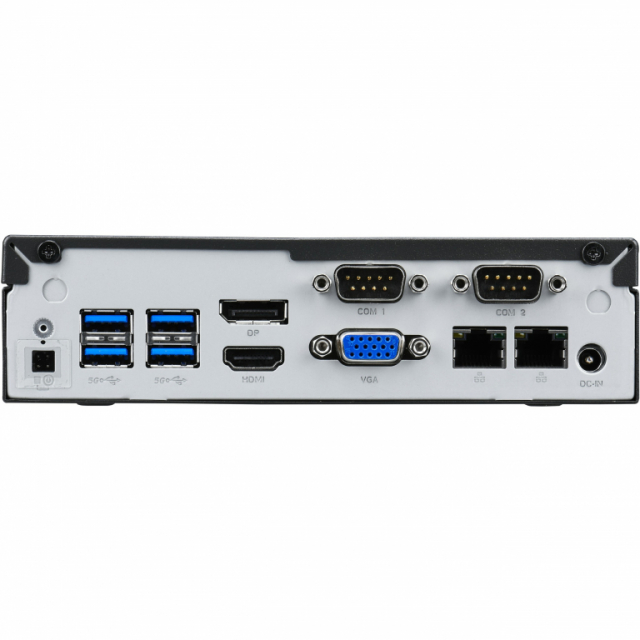

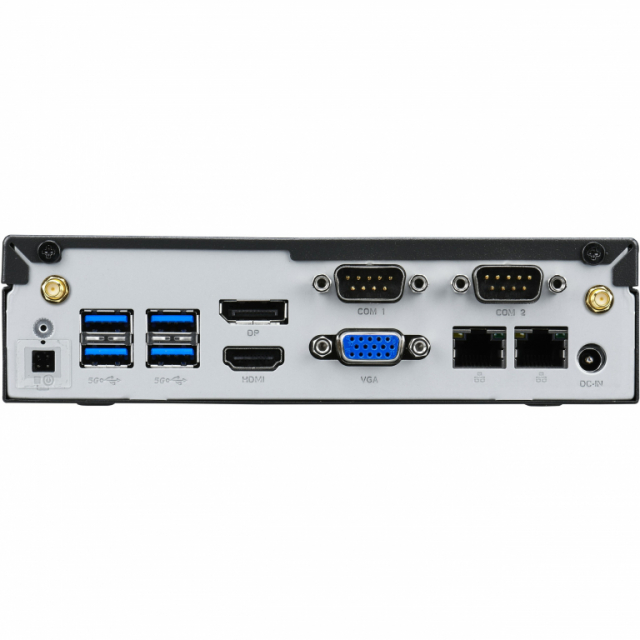

connections and interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 8 |
Number of HDMI ports | 1 |
HDMI-Version | 2.0b |
Number of VGA (D-Sub) connections | 1 |
Number of DisplayPort connections | 1 |
DisplayPorts-Version | 1.4a |
headphone outputs | 1 |
Number of Ethernet LAN ports (RJ-45) | 2 |
Number of serial ports | 2 |
Design | |
case type | 1,35 l großer PC |
Product color | Schwarz |
cooling | Passiv |
LED indicators | HDD, Leistung |
housing material | Stahl |
Lock-Type Cable Barrier | Kensington |
Panel mounting interface | 100 x 75 mm |
product type | Mini-PC Barebone |
Services | |
Number of processors supported | 1 |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) version | 2.0 |
audio chip | Realtek ALC888S |
Technical details | |
Konformitätsbescheinigungen | BSMI, CE, Eidgenössische Kommunikationskommission (FCC), RCM, RoHS, UKCA, VCCI |
logistic data | |
Goods tariff number (HS) | 84733080 |
Software | |
Supports Windows operating systems | Windows 10, Windows 11 x64 |
sustainability | |
sustainability certificates | ENERGY STAR, ErP |
energy | |
power supply type | Externer AC-Adapter |
power supply | 65 W |
Number of power supply units | 1 |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
power supply output voltage | 19 V |
AC adapter output current | 3,42 A |
operating conditions | |
operating temperatur | 0 - 40 °C |
Operating relative humidity | 10 - 90% |
weight and dimensions | |
broad | 165 mm |
depth | 190 mm |
height | 43 mm |
Weight | 800 g |
package weight | 2,1 kg |
scope of delivery | |
