processor | i5-13420H |
processor manufacturer | Intel |
processor family | Intel® Core™ i5 |
processor generation | Intel® Core™ i5 Prozessoren der 13. Generation |
number of CPU cores | 8 |
processor threads | 12 |
Processor Boost Frequency | 4,6 GHz |
performance cores | 4 |
Efficient Cores | 4 |
Leistungskern maximale Turbofrequenz | 4,6 GHz |
Effizienter Kern maximale Turbofrequenz | 3,4 GHz |
processor cache | 12 MB |
processor cache type | Smart Cache |
Number of processors installed | 1 |
Base performance of the processor | 45 W |
Maximum turbo performance | 95 W |
Storage | |
storage capacity | 16 GB |
RAM memory maximum | 32 GB |
Internal storage type | DDR4-SDRAM |
storage layout | 2 x 8 GB |
memory card slots | 2x SO-DIMM |
memory clock speed | 3200 MHz |
storage medium | |
total storage capacity | 1 TB |
storage media | SSD |
Total capacity of the SSDs | 1 TB |
Number of SSD installed | 1 |
SSD storage capacity | 1 TB |
SSD interface | PCI Express 4.0 |
Eigenschaft | Trusted Platform Module (TPM) |
SSD form factor | M.2 |
graphic | |
Separates Grafikkartenmodell | Nicht verfügbar |
Hersteller der eingebauten GPU | Intel |
On-Board-Grafikadapterfamilie | Intel® UHD Graphics |
Eingebautes Grafikkartenmodell | Intel® UHD Graphics |
network | |
Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
WLAN-Standards | Wi-Fi 6 (802.11ax) |
antenna type | 2x2 |
Bluetooth-Version | 5.2 |
connections and interfaces | |
Number of USB 2.0 ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports | 1 |
Number of Thunderbolt 4 ports | 1 |
Number of HDMI ports | 1 |
HDMI-Version | 2.1 |
Number of DisplayPort connections | 1 |
Number of Ethernet LAN ports (RJ-45) | 1 |
Design | |

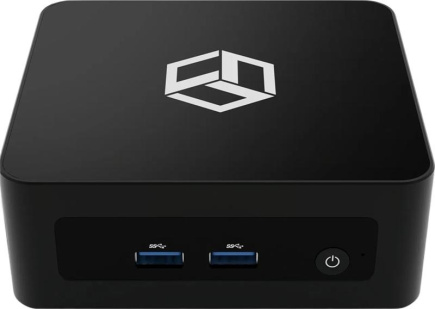

case type | Mini PC |
name of the color | Cloud Grey |
Volume (l) | 1 l |
Product color | Grau |
Services | |
motherboard chipset | Intel SoC |
audio chip | Realtek ALC256 |
Audio-System | High Definition Audio |
product type | Mini-PC |
energy | |
power supply | 150 W |
Power Supply - Input Voltage | 100 - 240 V |
Power supply - input frequency | 50/60 Hz |
operating conditions | |
operating temperatur | 10 - 35 °C |
Storage temperature range | -40 - 60 °C |
Operating relative humidity | 20 - 80% |
humidity during storage | 10 - 90% |
operating height | 0 - 3048 m |
storage height | 0 - 12192 m |
certificates | |
certification | ENERGY STAR,RoHS |
weight and dimensions | |
broad | 191,4 mm |
depth | 195 mm |
height | 39 mm |
Weight | 1,8 kg |
