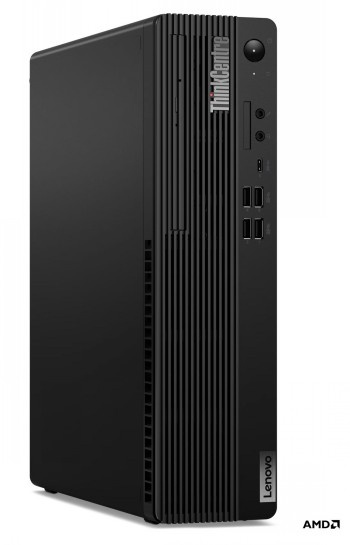

Lenovo ThinkCentre M75s SFF Gen5 is a business-class desktop computer built on powerful AMD technology. The slightly larger SFF chassis offers an extensive array of ports and multiple expansion slots. The Microsoft Pluton security processor enhances the resilience of ThinkCentre M75s SFF models against hardware and firmware attacks.
Key Features:
- Operating System: Windows 11 Pro 64-bit
- CPU: AMD Ryzen 5 8500G (6C/12T,3.5/5.0GHz,6MB/16MB)
- Chipset: AMD PRO665
- Memory: 16GB DDR5 5200MHz UDIMM (1x16)
- Memory capacity max.: 64GB (2x32)
- Integrated graphics: AMD Radeon 740M Graphics
- SSD 512GB M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Additional Storage Support: 1x3.5"HDD and 1xM.2 2280
- Installation kits for additional drives must be purchased separately as an option
- Optical Drice: internal DVD+/-RW
- Card Reader: 3-in-1 (SD/SDHC/SDXC)
- Internal Speaker: 1x1W
- LAN: 100/1000M Gigabit Ethernet
- WLAN: one free M.2 Wi-Fi slot
- Lenovo USB keyboard and USB Mouse included
- Front panel: 4xUSB-A 3.2 Gen1, 1xUSB-C 3.2 Gen1, 1x3.5mm audio combo, 1x3.5mm Mic
- Back panel: 2xDisplayPort 1.4a, HDMI 2.1 TMDS, 4xUSB2.0, 1xRS232, RJ-45, 1x3.5mm Line Out
- Low Profile Expansion Slots: 1xPCIe 3.0 x1, 1xPCIe 3.0 x16
- LP Card max. Size: =155mm (length), =70mm (height)
- Security chip: TPM 2.0 (TCG ja FIPS 140-2 certified)
- Security CPU: Microsoft Pluton
- Kensington® Security Slot™ (3x7mm)
- Internal PSU: 260W 90%
- Military-Grade Durability: MIL-STD-810H
- Standard warranty: 3Y on-site
- Weight: 4.6kg
Lenovo CO2 Offset Gen2 Emission Compensation
- The carbon dioxide emissions generated from the production, transportation, and electricity consumed throughout the lifecycle of this device have been offset through the global Climeco organization in approved UN environmental projects.
Environmental and Energy Certifications
- ENERGY STAR® 8.0, EPEAT™ Gold Registered, ErP Lot 3, GREENGUARD®, RoHS compliant, TCO Certified 9.0
Product life cycle used in emission assessments, years | 4 |
Manufacturing-related CO2 emissions, kg (manufacturer?s estimate) | 314.7 |
Product life cycle CO2 emissions, kg (manufacturer?s estimate) | 479 |
Operating system provided | Windows 11 Pro |
Green certifications | TCO 9.0 |
Connections | Serial (RS-232) |
Processor family | AMD Ryzen 5 |
Processor number of cores | 6 |
INTERNAL MEMORY | 16 GB |
Solid State Disk drive type | M.2 PCIe NVMe |
Total Storage Capacity | 512 GB SSD |
Maximum internal memory, GB | 64 GB |
Graphic adapter | AMD Radeon 740M |
Processor clock speed, GHz | 3.50 |
MOTHERBOARD CHIPSET | AMD PRO665 |
Memory slots (available) | 2 |
Processor model | AMD Ryzen 5 8500G (Max. 5.0GHz, 16MB, 6C) |
Power supply, W | 290 |
Processor manufacturer | AMD |
Dimensions W x D x H, mm | 92.5 x 297.7 x 339.5 |
Weight, g | 4600 |
PCI Express x16 | 1 |
PCI Express x1 | 1 |
USB-C (USB 3.2) ports quantity | 1 |
Internal memory type | DDR5 |
Memory clock speed, MHz | 5200 |
Ethernet LAN (RJ-45) ports quantity | 1 |
USB-A (USB 3.2) ports quantity | 4 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 2 |
USB-A (USB 2.0) ports quantity | 4 |
L3 cache, MB | 16 |
Memory slots | 2 |
Wireless LAN (WLAN) | No |
Optical Drive | Yes |
INTEGRATED MEMORY CARD READER | Yes |
Raid Controller | No |
Bluetooth | No |
Dedicated video memory (GB) | Uses system memory |
