Compliance certificates | RoHS |
Processor cache | 6 MB |
ECC supported by processor | No |
Processor boost frequency | 3.4 GHz |
Processor threads | 4 |
Built-in processor | Yes |
Processor cores | 4 |
Processor model | N100 |
Thermal Design Power (TDP) | 6 W |
Processor manufacturer | Intel |
On-board graphics card | Yes |
Graphics card family | Intel |
Maximum Resolution | 4096 x 2160 pixels |
On-board graphics card model | Intel® UHD Graphics |
Discrete graphics card model | Not available |
Number of displays supported | 3 |
Non-ETC | Yes |
Memory channels | Single-channel |
Memory voltage | 1.1 V |
ETC | No |
Supported memory clock speeds | 4800 |
Supported memory types | DDR5-SDRAM |
Memory slots type | SO-DIMM |
Maximum internal memory | 16 GB |
Number of memory slots | 1 |
LED indicators | Power |
Housing material | Steel |

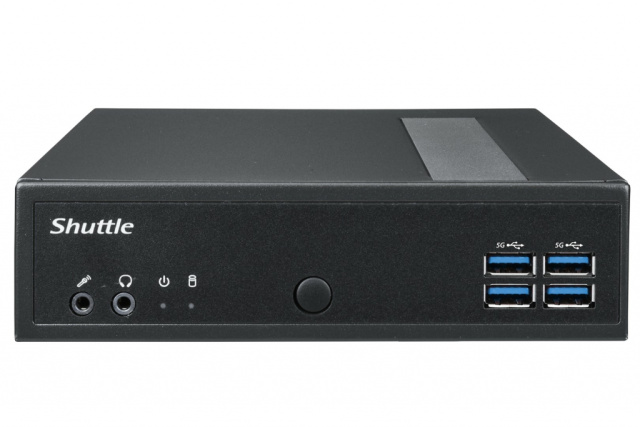

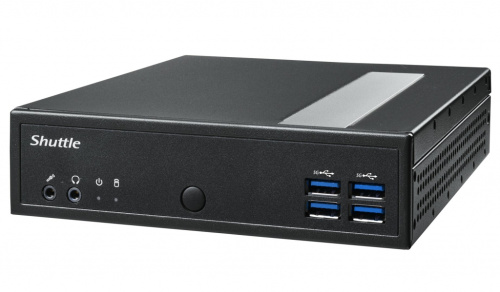

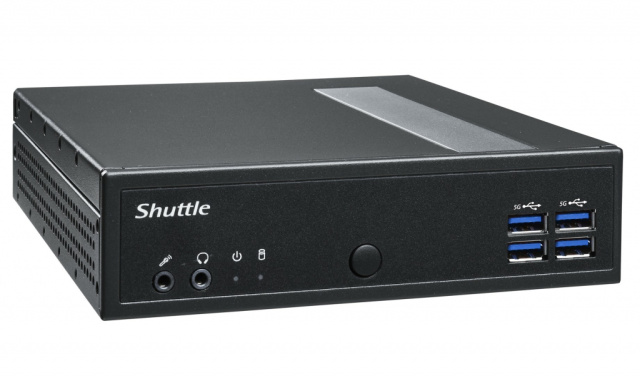

Product Type | Mini PC barebone |
Product colour | Black |
Cooling type | Passive |
VESA mounting | Yes |
On/off switch | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 75 |
Chassis type | 1.35L sized PC |
Cable lock slot type | Kensington |
AC input voltage | 100 - 240 V |
AC adapter output current | 3.42 A |
AC adapter output voltage | 19 V |
AC input frequency | 50/60 Hz |
Power supply type | External AC adapter |
Number of power supply units | 1 |
Power supply | 65 W |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
PACKAGE WEIGHT | 2.1 kg |
Depth | 190 mm |
Height | 43 mm |
Weight | 800 g |
Width | 165 mm |
Ethernet LAN | Yes |
LAN controller | Intel I226-LM |
Wi-Fi | No |
audio chip | Realtek ALC888S |
Number of processors supported | 1 |
BIOS Type | UEFI AMI |
Trusted Platform Module (TPM) version | 2.0 |
Trusted Platform Module (TPM) | Yes |
AC adapter included | Yes |
Drivers included | Yes |
Quick start guide | Yes |
Power cord included | Yes |
Windows operating systems supported | Windows 10 |
Linux operating systems supported | Yes |
Operating system installed | No |
Built-in speaker(s) | No |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 2 |
Storage drive sizes supported | M.2 |
NVMe | Yes |
Storage drive interface | PCI Express, Serial ATA III |
Card reader integrated | No |
HDMI version | 2.0b |
Microphone in | Yes |

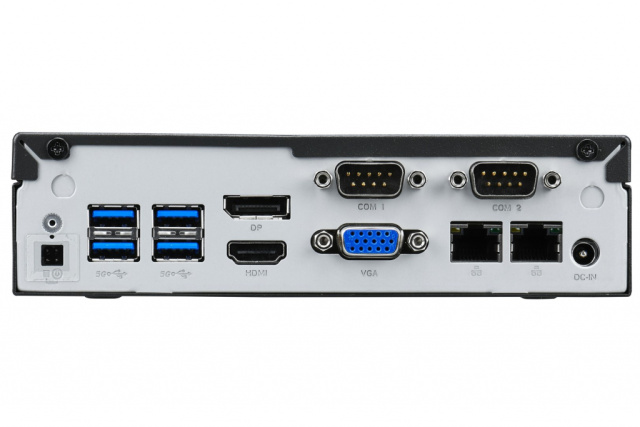

Ethernet LAN (RJ-45) ports | 2 |
DisplayPort version | 1.4a |
DisplayPorts quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
Serial ports quantity | 2 |
Headphone outputs | 1 |
DC-in jack | Yes |
Harmonized System (HS) code | 84733080 |
Sustainability certificates | ENERGY STAR |
Sustainability compliance | Yes |
