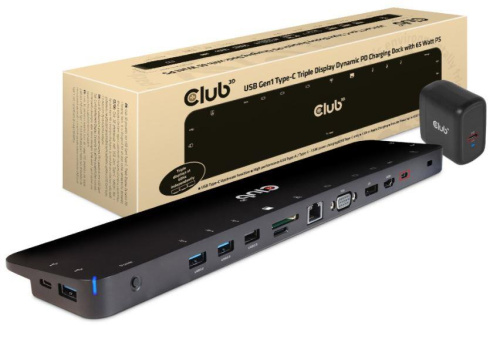

NB ACC DOCKING STATION/USB-C 65W CSV-1564W65 CLUB3D

NB ACC DOCKING STATION/USB-C 65W CSV-1564W65 CLUB3D
€ 159.00
-+
Add to cart
  • Without TAX: € 130.33
  • Brand:Club3d Model:CSV-1564W65 Availability:Pre-order 2-3 W. Days Quantity:5 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Extended warranty - repair -
Model name USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS | 1x15pin D-sub | 1xHDMI | 1xDisplayPort | 2xUSB 2.0 | 3xUSB 3.2 | 3xUSB-C | 1xHeadphones jack | 1xSD Card Slot | 1xMicroSD Card Slot | 1xRJ45
Description USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS
The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks' power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a Headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, Mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.

Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
• One USB Gen1 Type-C Data port
• One USB Gen1 Type-C port supports PD charging with max 100W (20V/5A) Bundled with 65W Power Supply (for notebooks with current consumption up to 65W)
• HDMI™ max. 4K 30 Hz
• DP™ max. 4K 30 Hz
• VGA max. 1920x1200 60Hz
Vendor Homepage www.club-3d.com/en/detail/2576/usb_gen1_type_c_triple_display_dynamic_pd_charging_dock_with_65_watt_ps/
Model CSV-1564W65
Model name USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS
15pin D-sub 1
DisplayPort 1
HDMI 1
Headphones jack 1
MicroSD Card Slot 1
RJ45 1
SD Card Slot 1
USB 2.0 2
USB 3.2 3
USB-C 3
Included Accessories • PowerSupply Input:100-110/240VAC, Output: up to 65W, Various Power plugs depending on Country (Specify on order); • 2x USB Type-C cable: 1x connection to Host 27cm / 10.63", 1x RED cable USB type-C for charging to PowerSupply 1 m / 3.28 ft; • Quick Install Guide.
Dimensions 35 x 7.5 x 2 cm
Cable length 1 m
Unit Net Weight 0.372 kg
Unit Gross Weight 0.616 kg
Full Description Line Model name USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|3xUSB-C|1xHeadphones jack|1xSD Card Slot|1xMicroSD Card Slot|1xRJ45
Category Code NBK
