Telepresence | No |
DC input voltage | 19 V |
Current | 4.754 A |
Power plug type | Type C |
AC input voltage | 100 - 240 V |
Power source type | AC |
Battery capacity | 0.675 Wh |
Number of batteries supported | 2 |
Battery Technology | Lithium |
Heat dissipation | 64 BTU/h |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 95% |
PACKAGE WEIGHT | 9.3 kg |
Weight | 7.08 kg |
Package depth | 989 mm |
Depth | 160 mm |
Package width | 207 mm |
Height | 164 mm |
Package height | 218 mm |
Width | 910 mm |
Ethernet LAN data rates | 1000 Mbit/s |
Security algorithms | 128-bit AES |
Wi-Fi standards | 802.11g |
Ethernet LAN | Yes |
Supported network protocols | IPv4, IPv6 |
Wi-Fi | Yes |
Product colour | Graphite |
Tilt angle range | -15 - 15° |
Product Type | Group video conferencing system |
Pan range | -25 - 25° |
PTZ control | Yes |
Packaging content | Rally Bar
Power supply
AC power cord
HDMI cable
USB cable

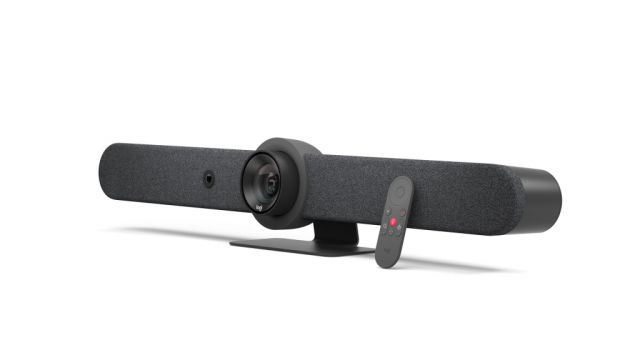

Remote control
Lens caps for main camera and AI Viewfinder
User documentation |
Power cable length | 2.5 m |
HDMI cable length | 2 m |
AC adapter included | Yes |
Quick start guide | Yes |
CABLES INCLUDED | DC |
Remote control included | Yes |
Echo cancellation | Yes |
Sample rates | 0 - 48 kHz |
Output level | 92/99 dB |
Microphone pick-up range | 4.5 m |
Audio beamforming | Yes |
Line-out impedance | 4 Ω |
Built-in speaker(s) | Yes |
Noise reduction | Yes |
Output voltage Total Harmonic Distortion (THD) | 2% |
RMS rated power | 8 W |
HDMI output ports quantity | 2 |
HDMI input ports quantity | 1 |
DC-in jack | Yes |
USB connector type | USB Type-A |
Microphone in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
HDMI ports quantity | 3 |
Remote control interface | Bluetooth |
Diagonal field of view | 90° |
Vertical field of view | 52.2° |
Horizontal field of view | 82.1° |
Zoom capability | Yes |
Optical zoom | 5x |
Digital zoom | 3x |
Master (outer) case length | 1004 mm |
Master (outer) case width | 220 mm |
Master (outer) case height | 231 mm |
Master (outer) case gross weight | 9.91 kg |
Harmonized System (HS) code | 85176990 |
HD type | 4K Ultra HD |
Maximum Frame Rate | 30 fps |
Supported video modes | 2160p |
Microphone frequency | 90 - 16000 Hz |
Sound pressure level (max) | 90 dB |
Microphone sensitivity | -36 dB |
Microphone direction type | Omnidirectional |
Number of microphones | 6 |
Warnings | Must not be disposed of in the general waste bin, the product requires special disposal. |
Windows operating systems supported | Windows 11 |
Mac operating systems supported | Mac OS X 12.0 Monterey |
Interface module Ethernet LAN (RJ-45) ports | 1 |
